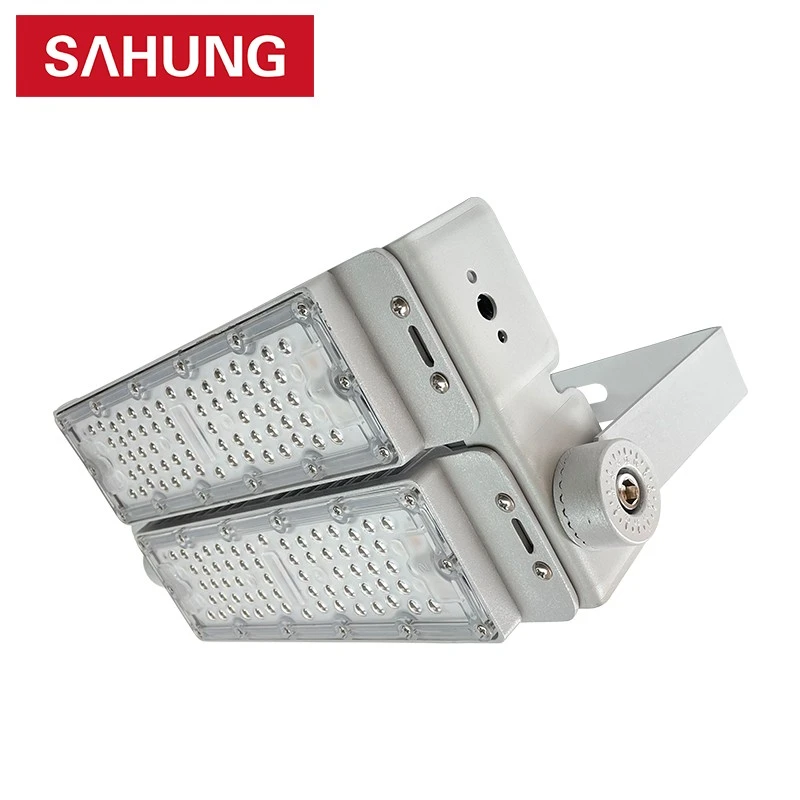

MSD Modular LED Side-Mounted Tunnel Light

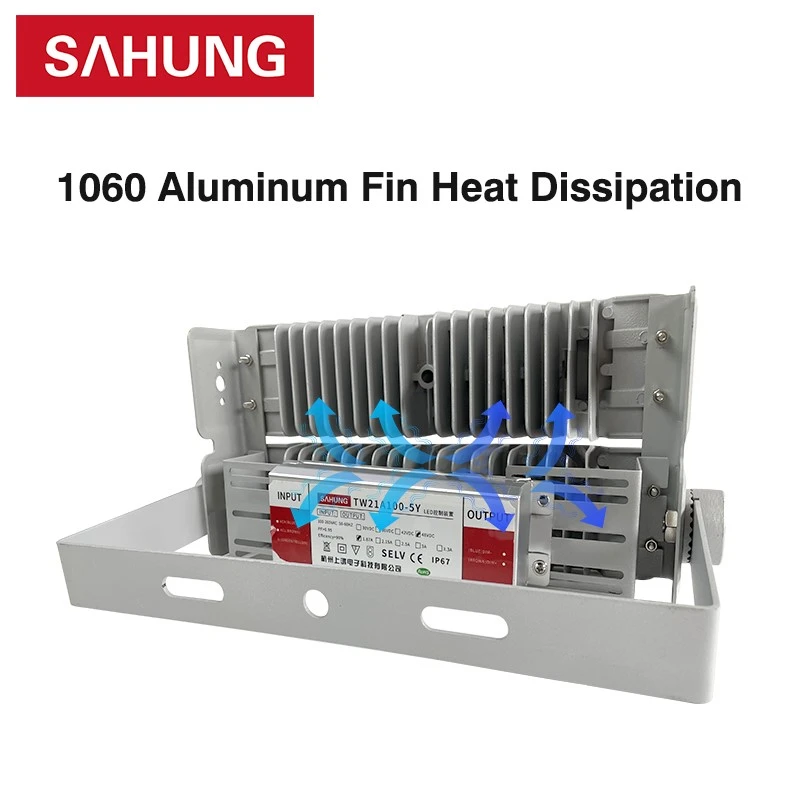

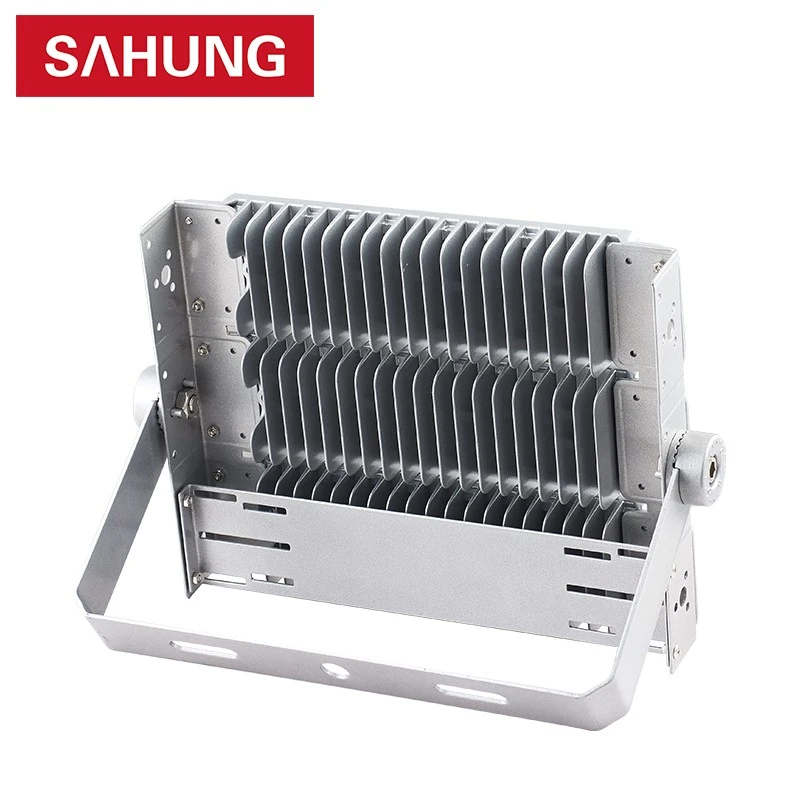

SAHUNG MSD Modular LED Side-Mounted Tunnel Light features advanced modular design built for continuous operation in harsh environments. Equipped with 1060 aluminum fin heat sink, the luminaire realizes efficient heat dissipation with lightweight compact construction, restraining light decay and securing long-term stable lighting performance.
We adopt premium branded LED light sources, and chip brands can be customized for project orders. Uniform light output, high color rendering and instant turn-on performance improve visibility inside tunnels and industrial venues. Multiple optical beam angles (60°,90°,70×140°) support professional tunnel lighting gradient layout.
Standard fitted with Mean Well IP67 constant current driver. Customers can choose SAHUNG or MOSO drivers as alternatives. 0-10V intelligent dimming is available as customized option to realize smart brightness adjustment for tunnel energy-saving control systems.

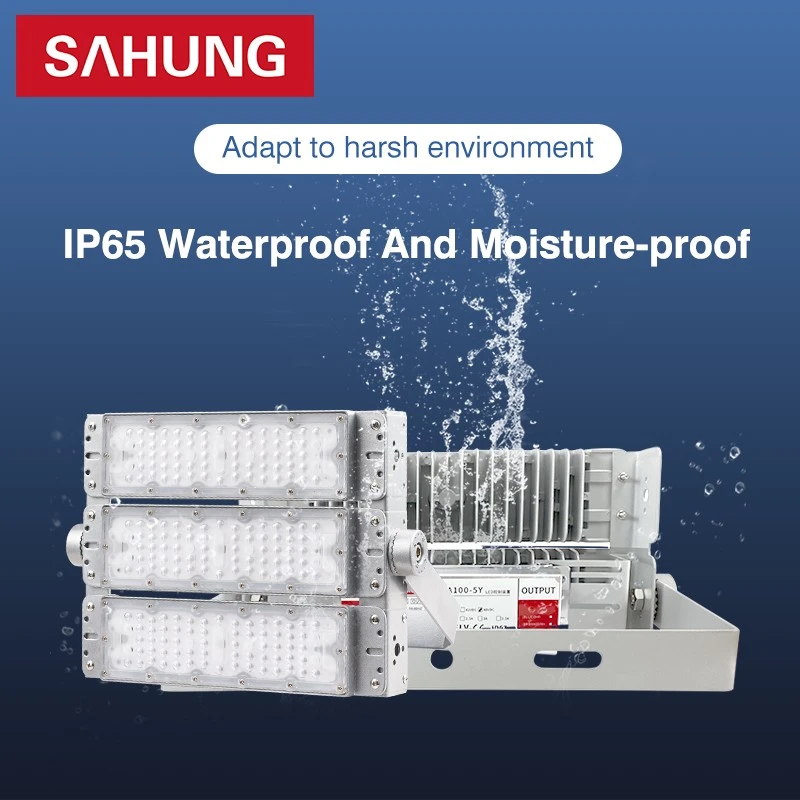

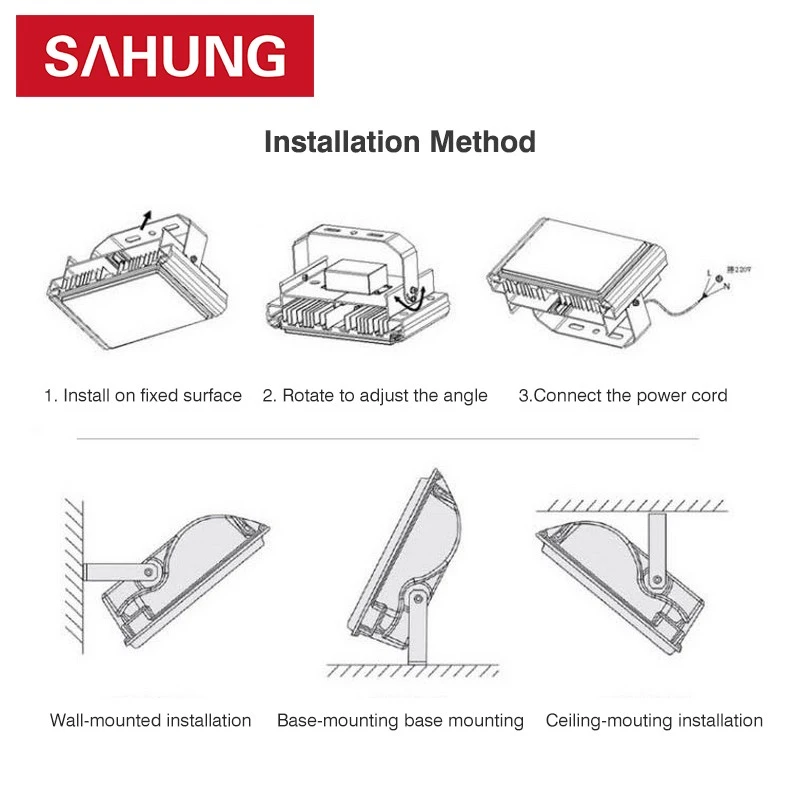

IP65 waterproof & moisture-proof construction prevents water vapor and dust intrusion. The thickened gear-type mounting bracket supports 180° rotation, allowing installers to freely adjust lighting direction. Power ranges cover 50W up to 300W, CCT adjustable from warm white to cool white (2700K–6500K), CRI≥Ra80. Ideal for highway tunnels, underpasses, mines, large warehouses and port lighting.
Technical Specification Table
|
Item |
Details |
|
Product Name |
SAHUNG MSD Modular LED Side-Mounted Tunnel Light |
|
Power Options |
50W, 100W, 150W, 200W, 250W, 300W |
|
Heat Sink |
1060 Aluminum Fin + Die-cast Aluminum Housing |
|
LED Source |
Famous brand LED chips, customizable |
|
Power Driver |
Mean Well driver (default), optional SAHUNG / MOSO, IP67 rated |
|
Dimming |
Optional 0-10V intelligent dimming |
|
Weather Rating |
IP65 Waterproof & Moisture-proof |
|
Beam Angle |
60° / 90° / 70×140° customizable |
|
Color Temperature |
2700K–6500K Customizable |
|
CRI |
≥Ra80 |
|
Adjustable Bracket |
180° rotatable thickened bracket |
|
Suitable Projects |
Highway tunnels, underpasses, mining zones, warehouses, port terminals, industrial workshop lighting |
