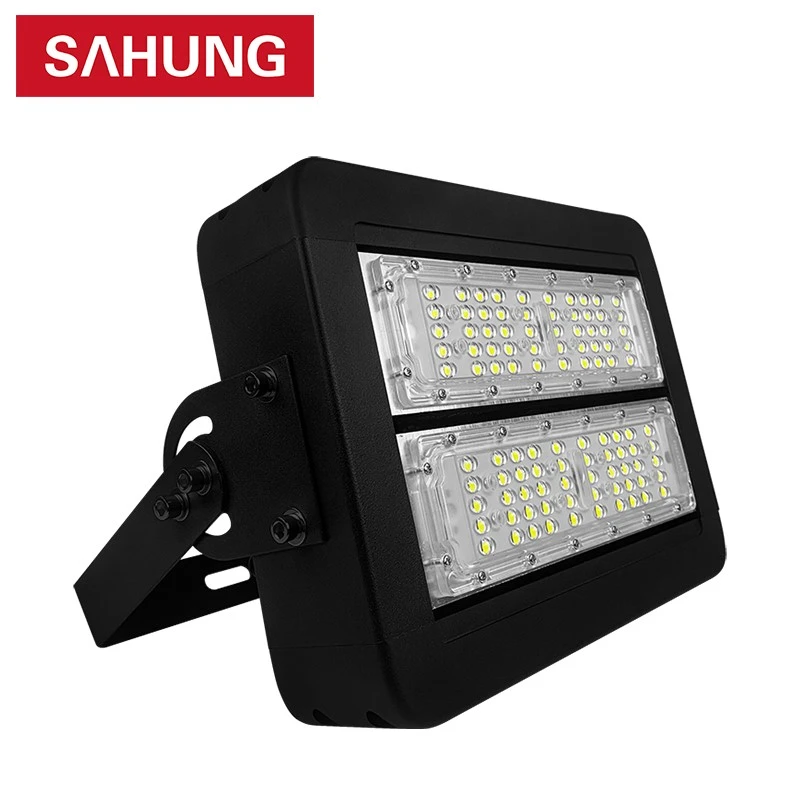

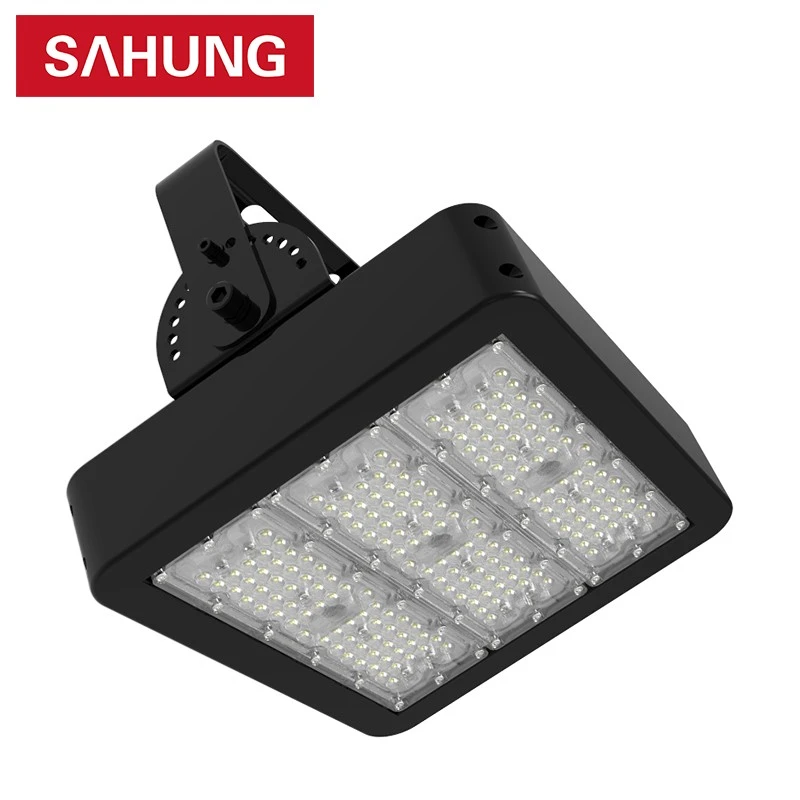

SDK LED Side-Mounted Tunnel Light
SAHUNG SDK LED Tunnel Light utilizes solid die-cast aluminum construction. Optimized thermal structure accelerates heat evacuation, minimizes lumen depreciation and maintains consistent luminous efficiency under long-hour continuous operation.
This tunnel light comes with OSRAM LED chips as standard, and alternative LED chip brands are available for bulk orders. High brightness and excellent color rendering greatly enhance visibility within tunnels, mines and large industrial warehouses. Customizable color temperature ranges from warm white to cool white to meet different design requirements.

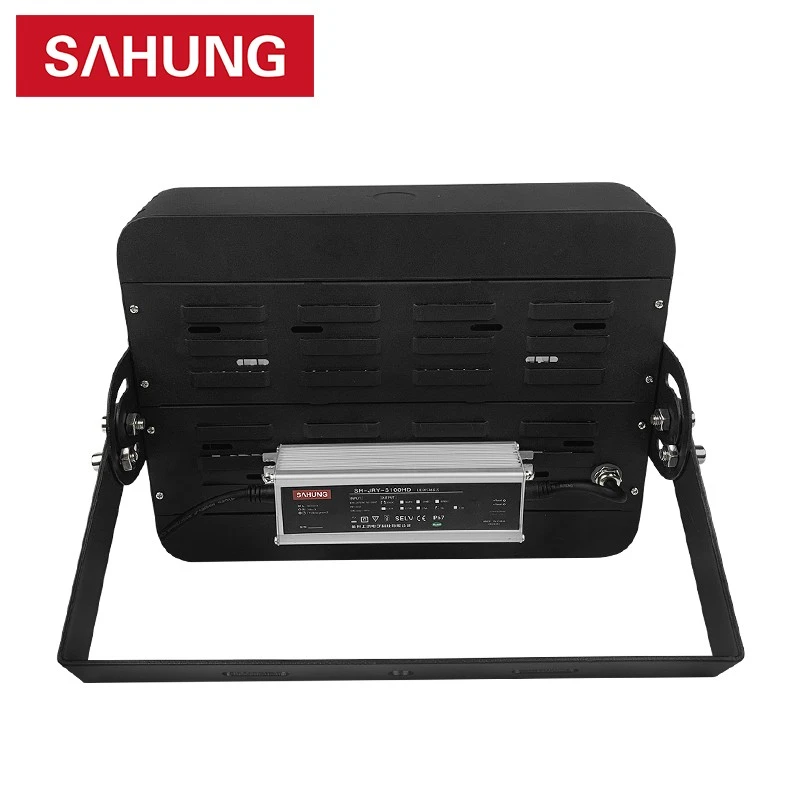

Equipped with IP67 certified intelligent IC driver integrated with 6KV surge protection, it provides stable flicker-free lighting and outstanding moisture resistance. Standard fitted with SAHUNG driver; customized driver solutions are acceptable for special engineering tenders.

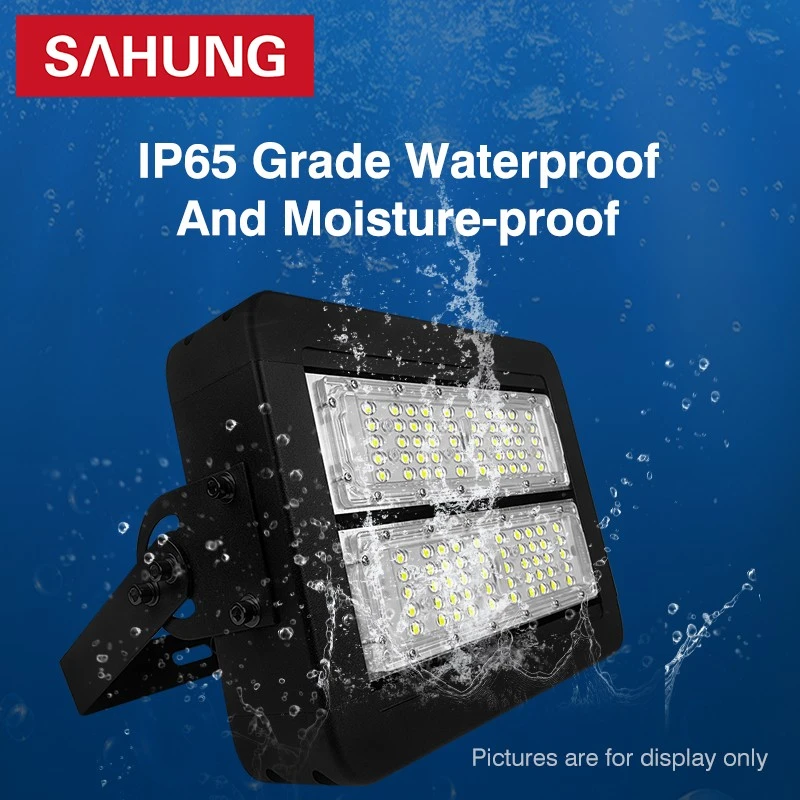

Boasting IP65 protection level, the lamp body effectively blocks dust and rainwater. The reinforced mounting bracket supports 180° rotation, allowing flexible aiming during installation. Power covers 50W up to 250W, CRI≥80Ra, CCT customizable 2700K–6500K. It is an ideal lighting solution for highway tunnels, underpasses, mining areas, port terminals and factory warehouses.
Technical Specification Table
|
Item |
Details |
|
Product Name |
SAHUNG SDK LED Side-Mounted Tunnel Light |
|
Power Options |
50W, 100W, 150W, 200W, 250W |
|
Structure |

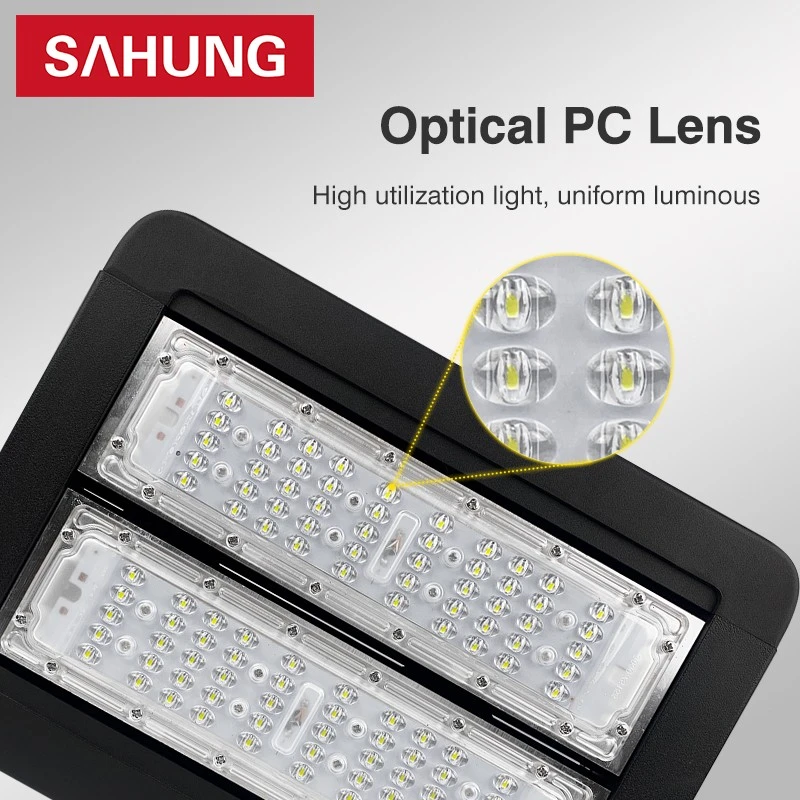

Die-cast Aluminum Housing + Optical PC Lens |
|
LED Source |
Standard OSRAM LED chips, customizable |
|
Power Driver |
IP67 intelligent IC driver, built-in 6KV surge protection |
|
Weather Rating |
IP65 Waterproof & Dustproof |
|
Color Temperature |
2700K–6500K Customizable |
|
CRI |
≥80Ra |
|
Bracket |
180° adjustable mounting bracket |
|
Suitable Projects |
Highway tunnels, underpasses, mining sites, warehouses, industrial lighting |
