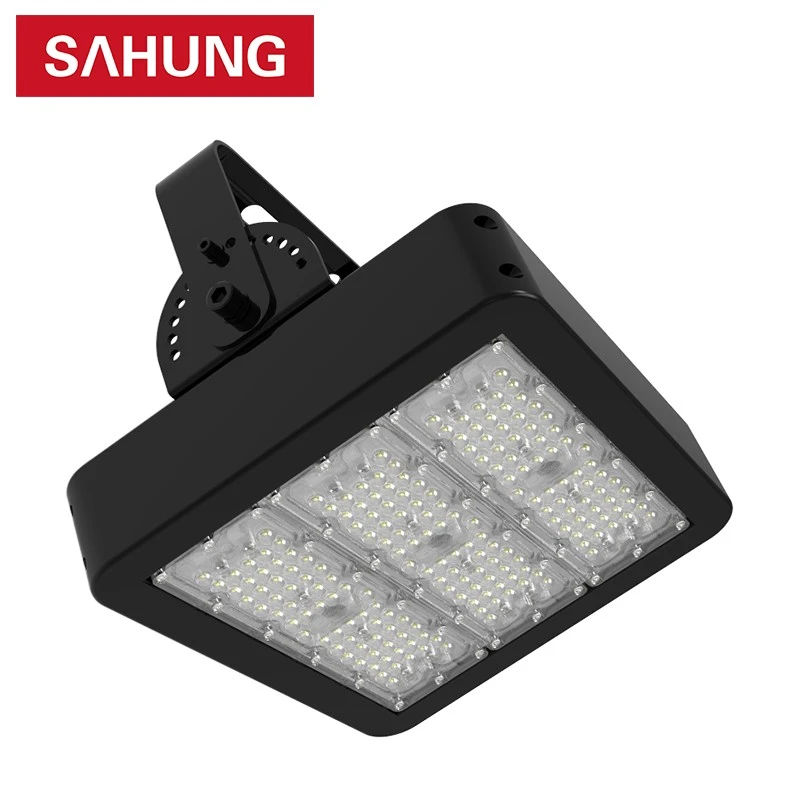

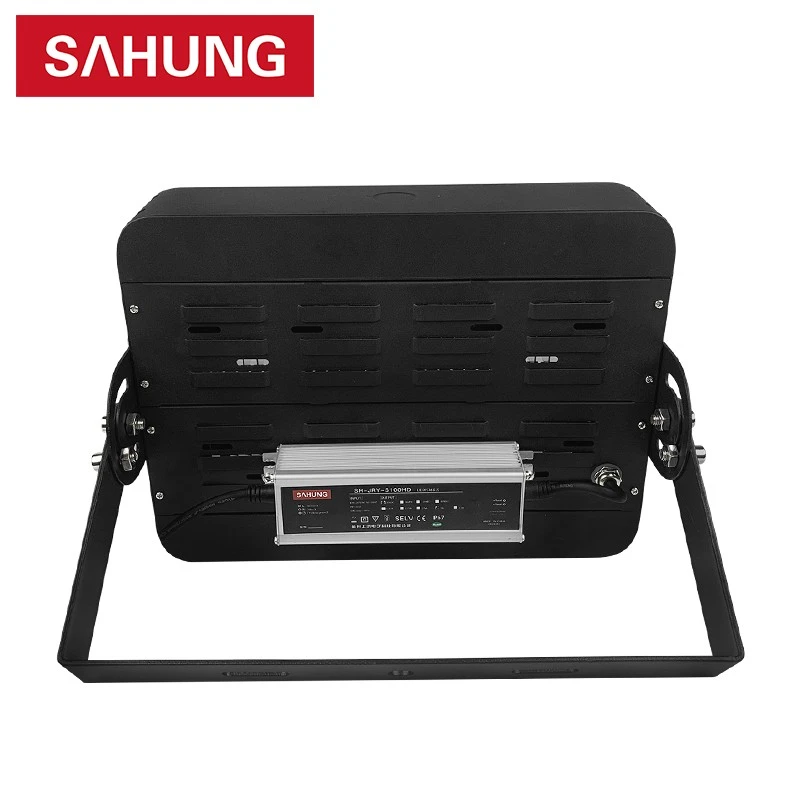

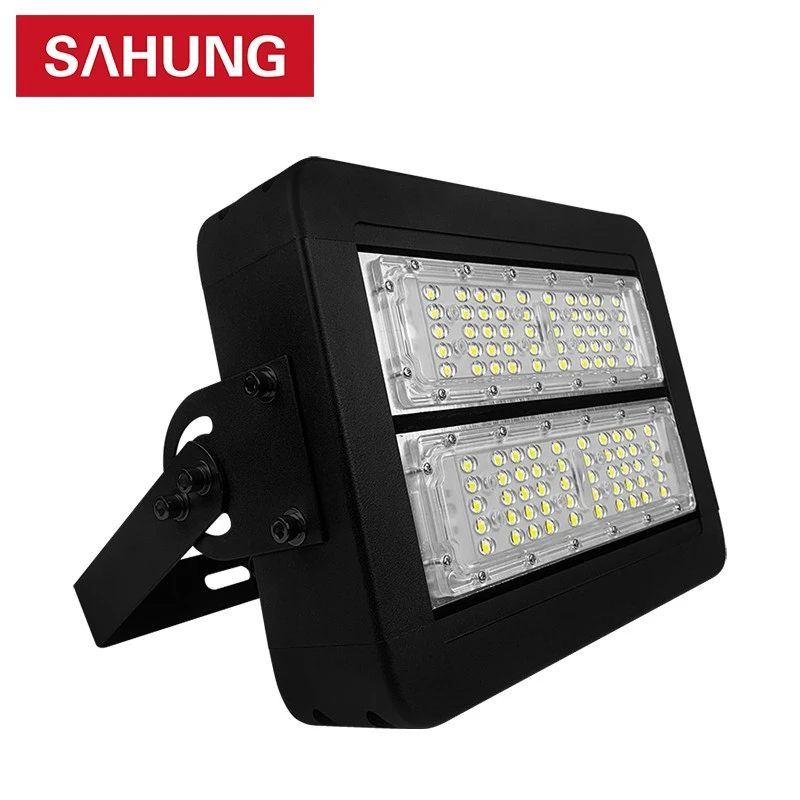

SDK LED Tunnel Flood Light
SAHUNG SDK LED Tunnel Flood Light is a heavy-duty modular industrial lighting fixture engineered for highway tunnels, underpasses, mining areas, logistics warehouses, port terminals and other outdoor & underground infrastructure projects. Adopting die-cast aluminum housing, high-transmittance optical PC lens and reliable constant current driver, this tunnel light delivers fast heat dissipation, high brightness and long-term stable operation. It supports customizable LED chip brands to satisfy diverse engineering tender standards.
The luminaire features robust die-cast aluminum structure with anti-corrosion property. Optimized radiator design realizes rapid heat dissipation, effectively lowering the operating temperature of LED chips, suppressing light attenuation and extending the overall service lifespan of the lamp.

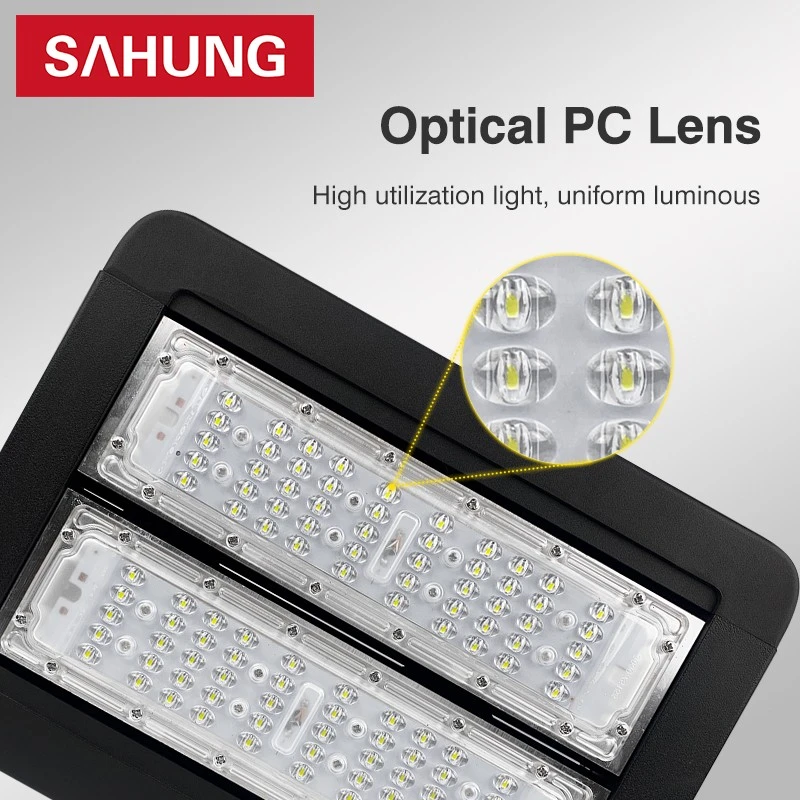

Standard configuration adopts premium OSRAM LED chips; alternative chip brands are available upon customer request. It provides high lumen output, high color rendering, low light decay and instant startup. Color temperature can be customized within 2700K–6500K to fit multiple application scenarios. Equipped with professional optical PC lens to improve light utilization rate and achieve even, uniform illumination.

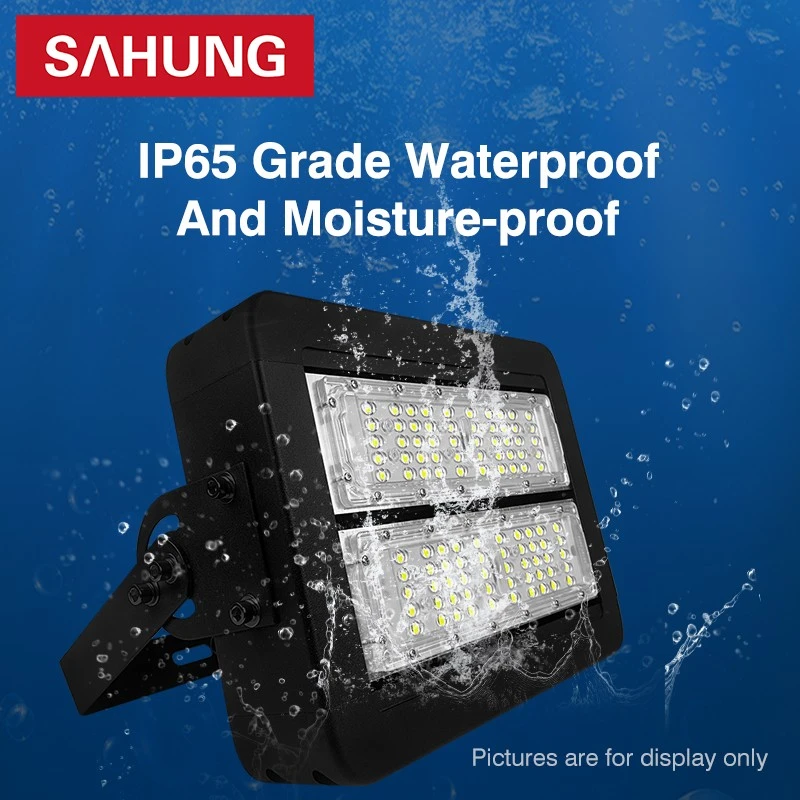

The whole fixture achieves IP65 waterproof & dustproof rating, perfectly adapting to humid, dusty underground and outdoor harsh environments. It is fitted with a heavy-duty mounting bracket supporting 180° angle rotation, enabling flexible adjustment of lighting direction during on-site installation.
|
Parameter |
Specification |
|
Model |
SAHUNG SDK LED Tunnel Flood Light |
|
Rated Power |
50W / 100W / 150W / 200W / 250W |
|
Housing & Optics |
Die-cast Aluminum Housing + Optical PC Lens |
|
LED Chip |
Standard OSRAM chip, customizable chip brands |
|
Driver |
Intelligent IC Driver, IP67 Rated, 6KV Surge Protection |
|
Protection Grade |
IP65 Waterproof & Dustproof |
|
CCT |
2700K ~ 6500K Customizable |
|
CRI |
≥80Ra |
|
Installation |
180° adjustable mounting bracket |
|
Application |
Highway tunnels, underpasses, mining zones, warehouses, industrial workshop lighting |
