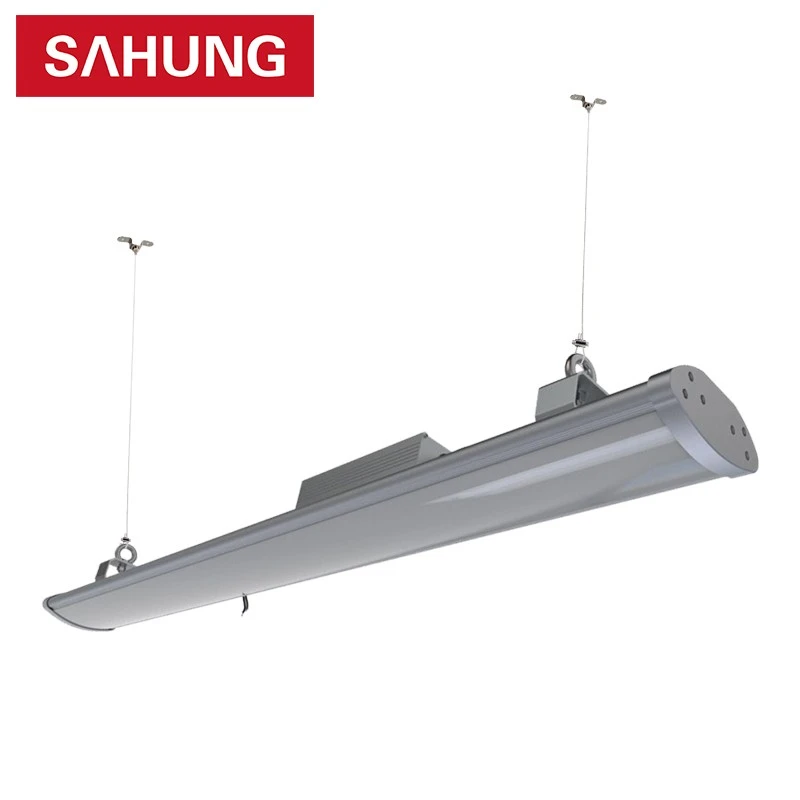

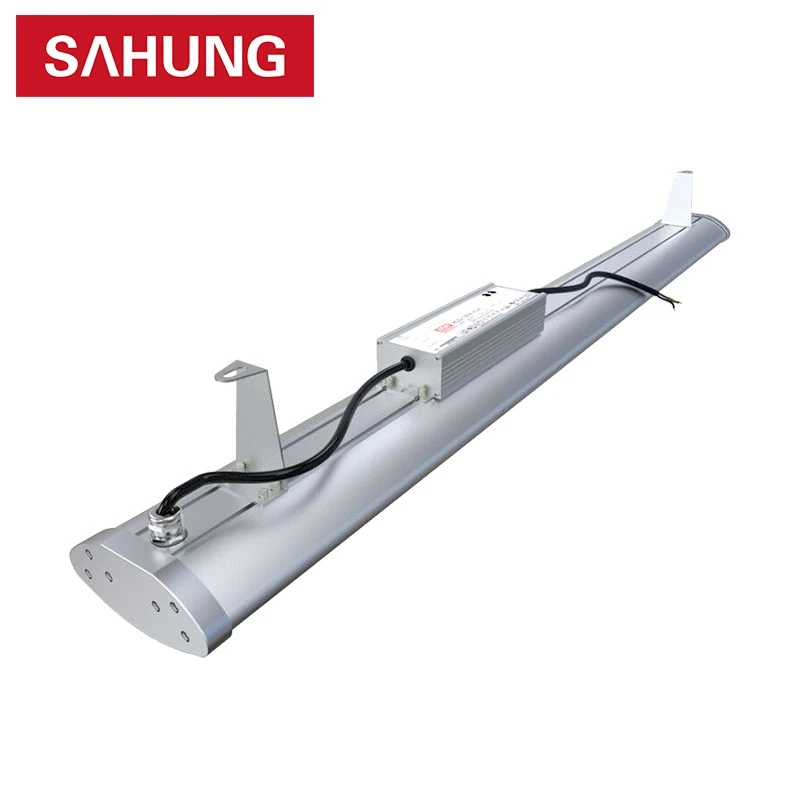

TXR LED Top-Mounted Tunnel Light
SAHUNG TXR LED Top-Mounted Tunnel Light is a heavy-duty long-strip industrial lighting fixture designed for factory workshops, warehouses, logistics centers, underground corridors, parking lots and large indoor industrial venues. Adopting aviation thickened aluminum housing, optional milky PC diffuser lens and high-performance constant current driver, this linear lamp features efficient heat dissipation, anti-glare soft lighting and stable long-time operation. Optional 0-10V dimming function supports intelligent industrial lighting control systems.
Constructed with aviation-grade thickened aluminum housing. The optimized integrated heat dissipation structure expands heat exchange area, quickly dissipates heat generated by LED chips, lowers working temperature, suppresses light attenuation and extends the service life of the luminaire.

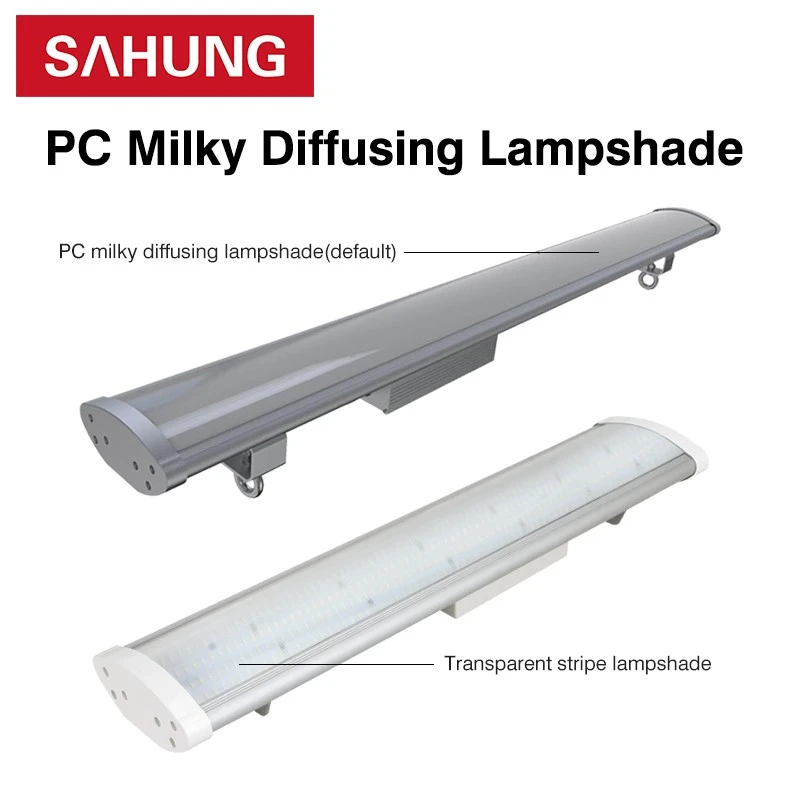

Equipped with well-known brand LED chips; chip brands can be customized to meet various engineering tender standards. It delivers high lumen output, high color rendering, low light decay and instant startup. Color temperature supports customization within 2700K–6500K. Two lampshade options are available: milky white diffusing shade (anti-glare, uniform soft light) and transparent strip lampshade (higher light output). Multiple beam angles optional: 60° / 90° / 120° (120° as default).

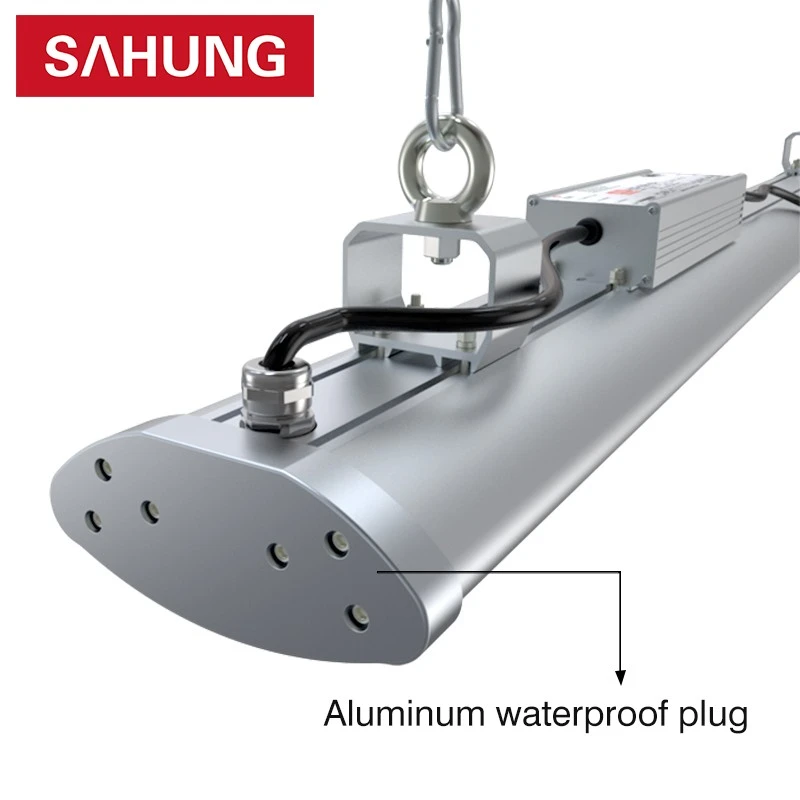

The whole lamp reaches IP65 waterproof & dustproof rating. Adopts stainless steel sealing and aluminum waterproof plug interface for excellent tightness, shock resistance and moisture resistance, adapting to humid and dusty industrial environments.
Technical Specification Table
|
Parameter |
Specification |
|
Model |
SAHUNG TXR LED Top-Mounted Tunnel Light |
|
Rated Power |
50W / 100W / 150W / 200W |
|
Housing & Optics |
Aviation Thickened Aluminum Housing; Milky Diffusing / Transparent PC Lampshade Optional |
|
LED Chip |
Famous brand LED chips, customizable |
|
Driver |
Intelligent IC Driver, IP67 Rated, 6KV Surge Protection |
|
Protection Grade |
IP65 Waterproof & Dustproof |
|
CCT |
2700K ~ 6500K Customizable |
|
CRI |
≥Ra80 |
|
Beam Angle |
60° / 90° / 120° (120° default) |
|
Dimming |
Optional 0-10V intelligent dimming (default non-dimmable) |
|

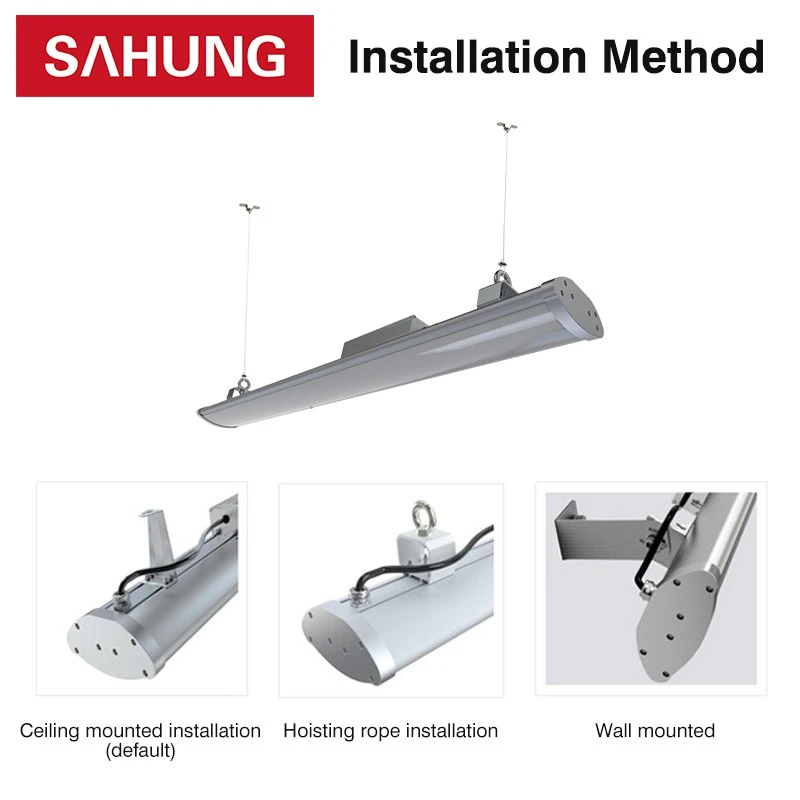

Installation |
Ceiling mounting / Suspension mounting / Wall mounting |
|
Application |
Factory workshops, warehouses, logistics centers, underground corridors, parking garages, industrial venues |
