SDA LED Tunnel Flood Light | Support 0-10V Intelligent Dimming
SAHUNG SDA LED Tunnel Flood Light is a high-performance modular industrial lighting fixture designed for highway tunnels, underpasses, mining areas, large warehouses, logistics yards and other harsh-environment lighting projects. Adopting die-cast aluminum fin radiator and high-transmission PC lens, this tunnel lamp delivers excellent heat dissipation, high luminous output and low light decay. Optional 0-10V dimming function makes it ideal for intelligent tunnel energy-saving lighting systems.

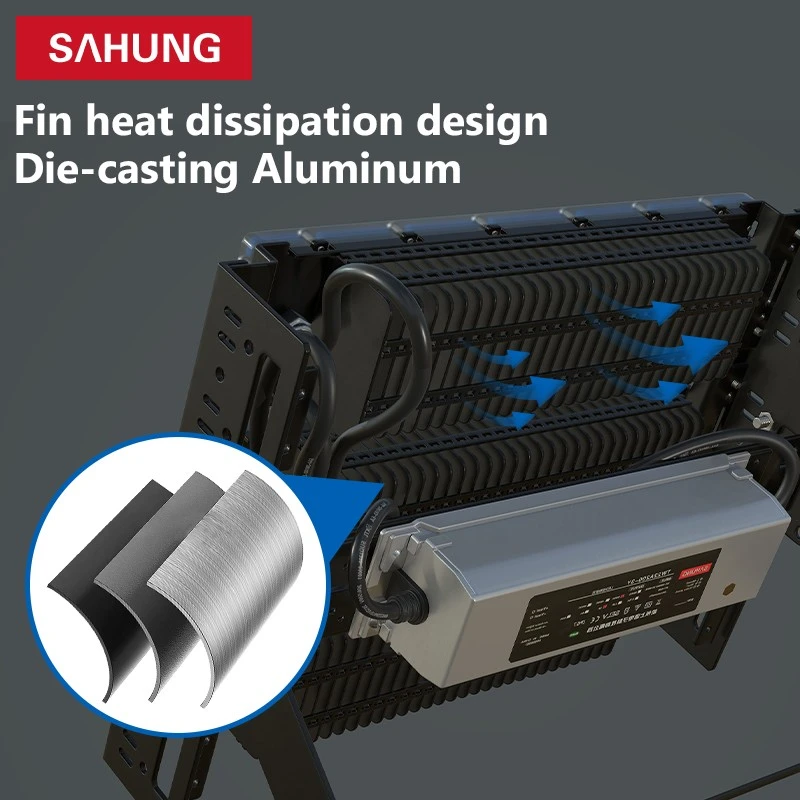

Constructed with die-cast aluminum fin heat dissipation structure. The fin-shaped radiator greatly expands heat dissipation area, accelerates heat discharge from LED chips, effectively controls operating temperature, reduces lumen depreciation and extends the overall service life of the luminaire.Equipped with well-known brand LED chips. Chip brands can be customized to satisfy different engineering tender standards. The fixture features high lumen output, stable light output and low light attenuation. Multiple color temperatures are optional: 2700K–6500K to match various scene requirements.
The whole lamp reaches IP65 waterproof rating, suitable for humid, dusty underground and outdoor working environments. It comes with an adjustable mounting bracket supporting 180° rotation, allowing flexible adjustment of lighting angle during installation.Available power specifications: 50W, 100W, 150W, 200W.CRI ≥80Ra. Widely used for highway tunnels, underground passages, mine sites, port terminals, factory workshops and large warehouse illumination.
Technical Specification Table
|
Parameter |
Specification |
|
Model |
SAHUNG SDA LED Tunnel Flood Light |
|
Rated Power |
50W / 100W / 150W / 200W |
|
Housing & Optics |
Die-cast Aluminum Fin Radiator + PC Lens |
|
LED Chip |
Famous brand LED chips, customizable |
|
Driver |
Intelligent IC Driver, IP67 rated, 6KV surge protection |
|

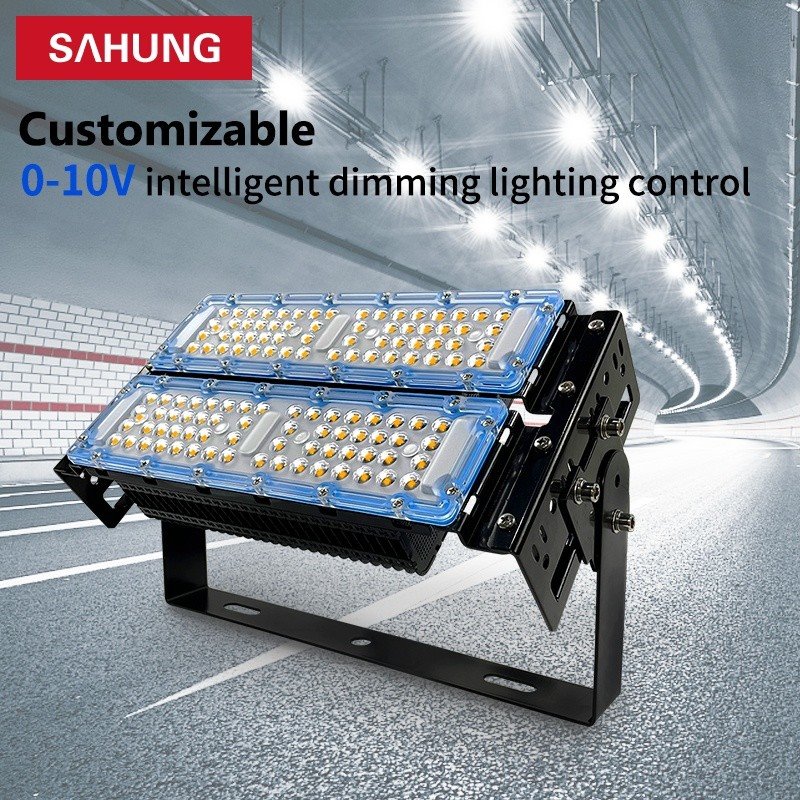

Dimming |
Optional 0-10V intelligent dimming (default non-dimmable) |
|
Protection Grade |
IP65 |
|
CCT |
2700K ~ 6500K Customizable |
|
CRI |
≥80Ra |
|
Installation |

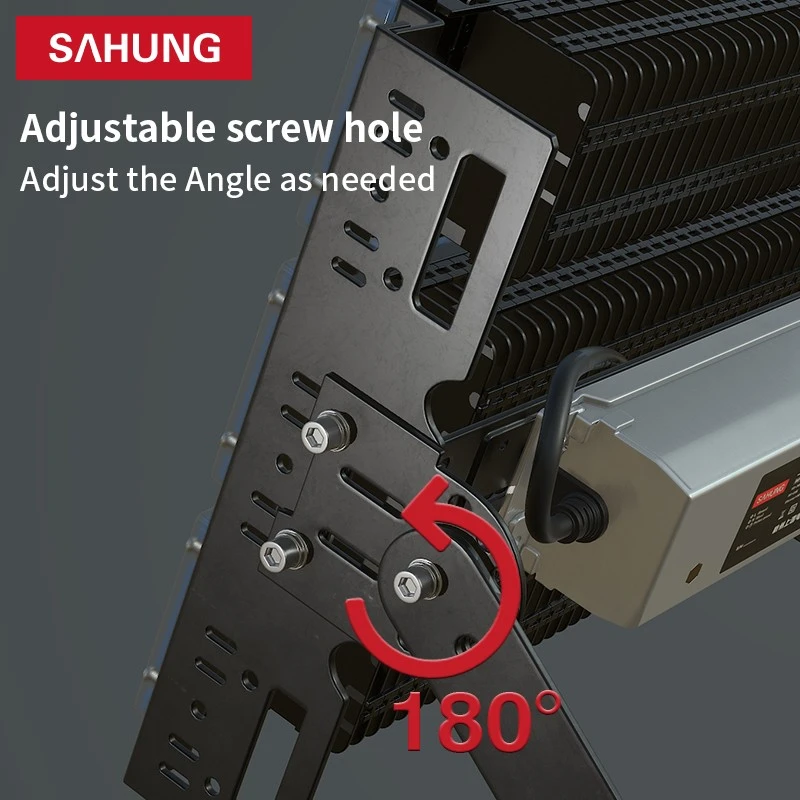

180° adjustable mounting bracket |
|
Application |
Highway tunnels, underpasses, mining zones, warehouses, industrial workshop lighting |
