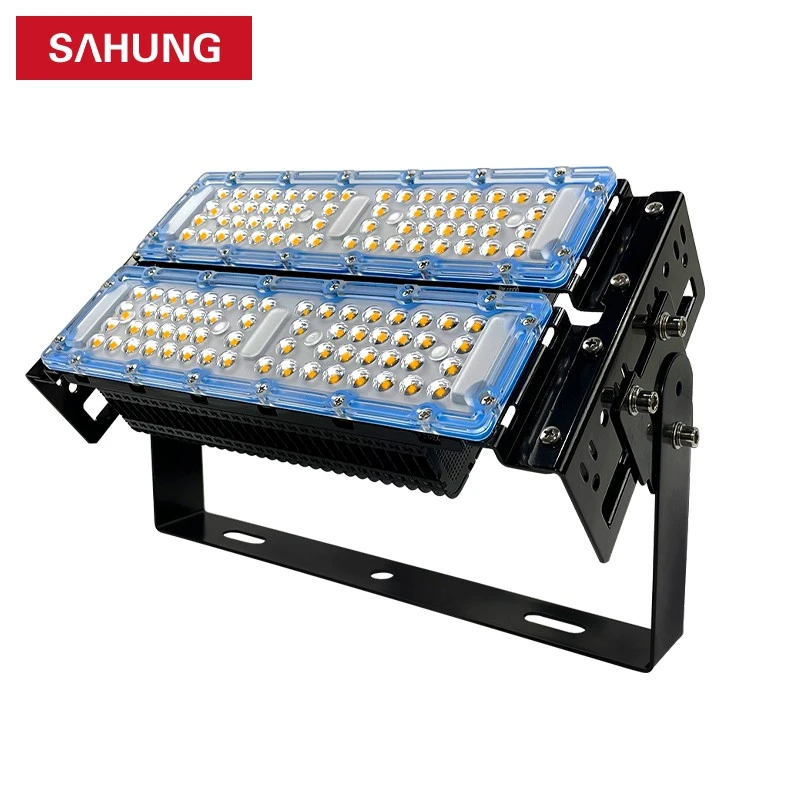

SDA Dimmable Side-Mounted Tunnel Light

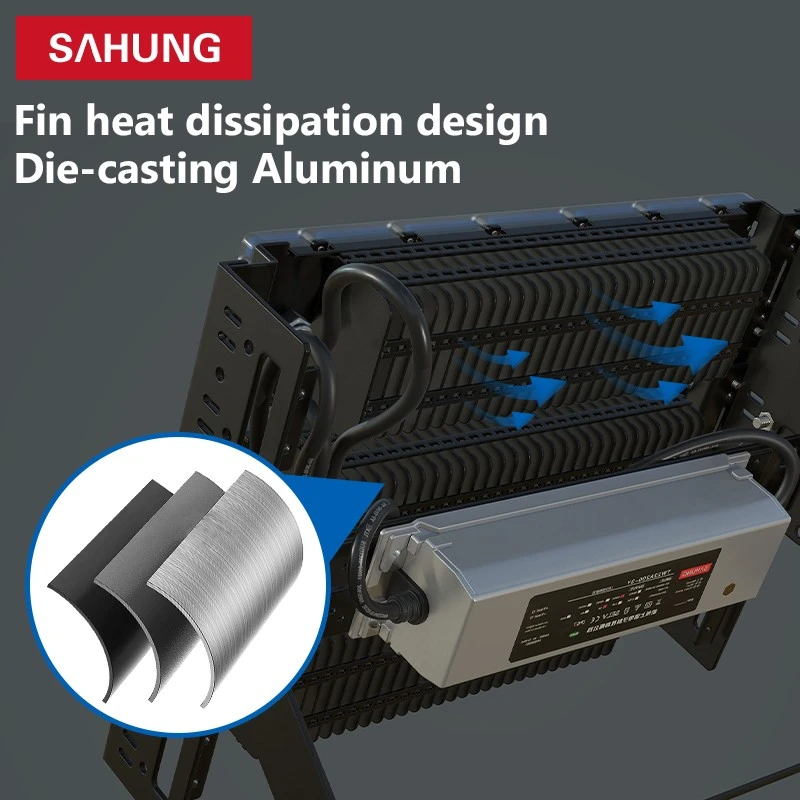

SAHUNG SDA LED Side-Mounted Tunnel Light adopts advanced aluminum fin heat dissipation technology. Enlarged heat dissipation surface quickly dissipates heat generated by LEDs, restraining light decay and maintaining stable luminous efficiency under continuous long-hour operation.

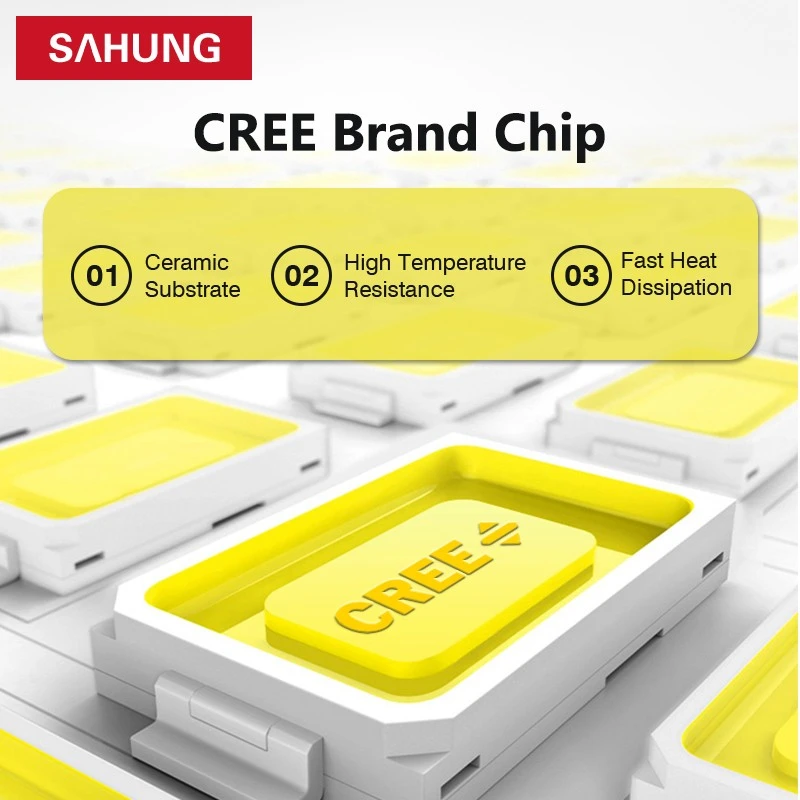

We adopt premium branded LED light sources with customizable chip options for bulk orders. High lumen performance ensures clear visibility inside tunnels, mines and large warehouses. Multiple color temperatures from warm white to cool white can be selected.

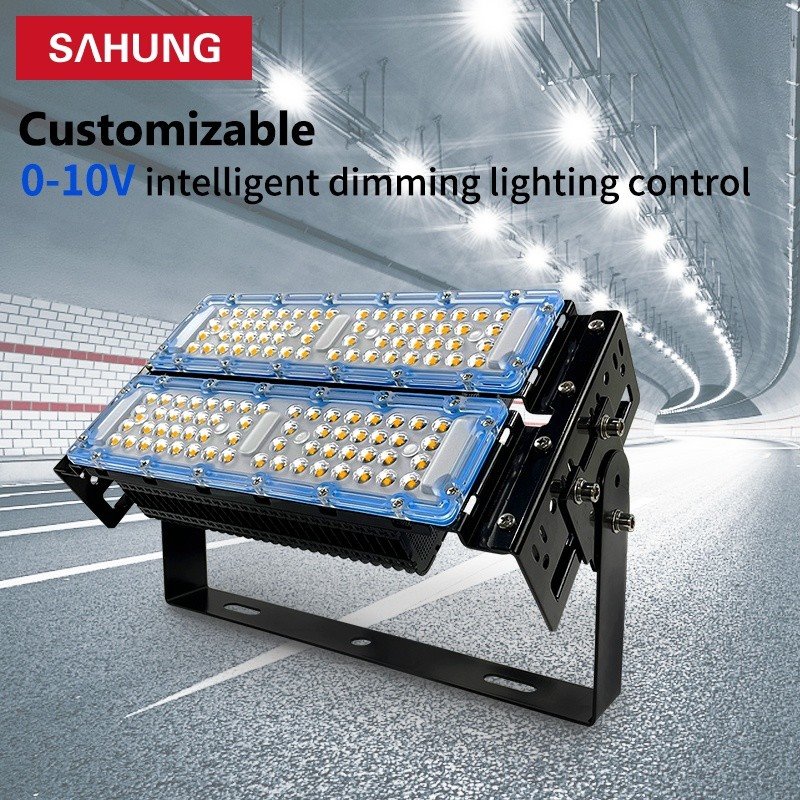

Equipped with IP67 constant current driver featuring 6KV surge protection, flicker-free output and outstanding waterproof performance. The 0-10V intelligent dimming system is available on request. It supports automatic monitoring, fault alarm and brightness adjustment, helping tunnel projects realize energy-saving intelligent control.

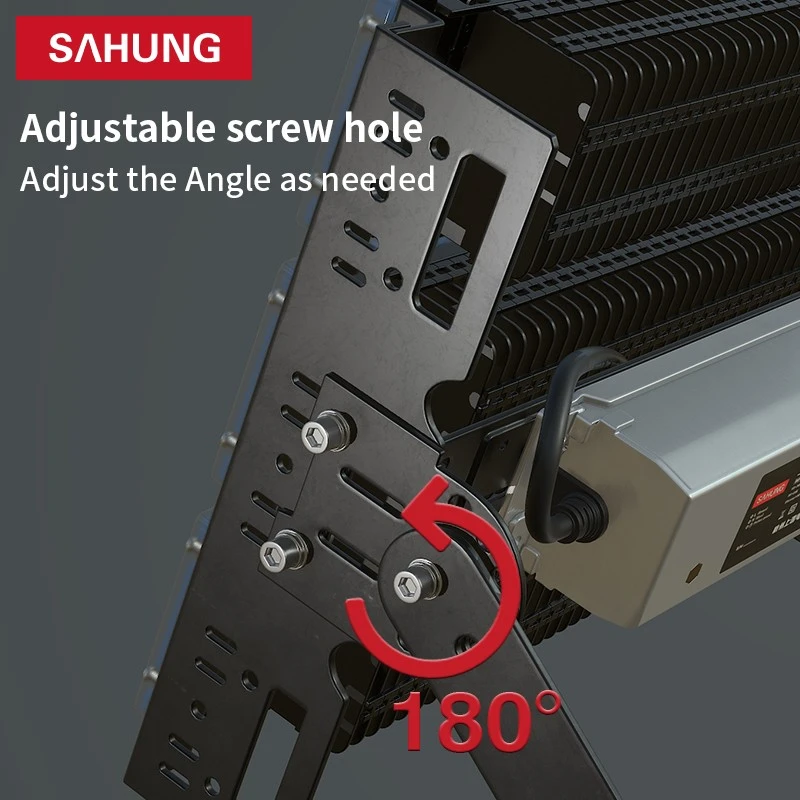

IP65 protection rating shields the lamp body from dust and moisture. The heavy-duty mounting bracket supports 180° rotation for flexible light angle setup. Power covers 50W to 200W, CRI≥80Ra, CCT customizable 2700K–6500K. It is the perfect lighting solution for highway tunnels, underpasses, mining areas, port terminals and factory warehouses.
Technical Specification Table
|
Item |
Details |
|
Product Name |
SAHUNG SDA LED Side-Mounted Tunnel Light |
|
Power Options |
50W, 100W, 150W, 200W |
|
Structure |
Die-cast Aluminum Fin Radiator + PC Lens |
|
LED Source |
Famous brand LED chips, customizable |
|
Power Driver |
IP67 intelligent IC driver, built-in 6KV surge protection |
|
Dimming Function |
Optional 0-10V intelligent dimming |
|
Weather Rating |
IP65 Waterproof & Dustproof |
|
Color Temperature |
2700K–6500K Customizable |
|
CRI |
≥80Ra |
|
Bracket |
180° adjustable mounting bracket |
|
Suitable Projects |
Highway tunnels, underpasses, mining sites, warehouses, industrial lighting |
