TGS Series Outdoor Waterproof Industrial Flood Light
SAHUNG TGS LED Industrial Flood Light is a cost-effective outdoor wide-area lighting fixture designed for parking lots, building facades, billboards, yards, garden plazas, factory exteriors and commercial outdoor lighting projects. Adopting white die-cast aluminum housing and air convection cooling structure, this floodlight delivers stable luminous output, reliable heat dissipation and IP65 waterproof performance for long-term outdoor operation.

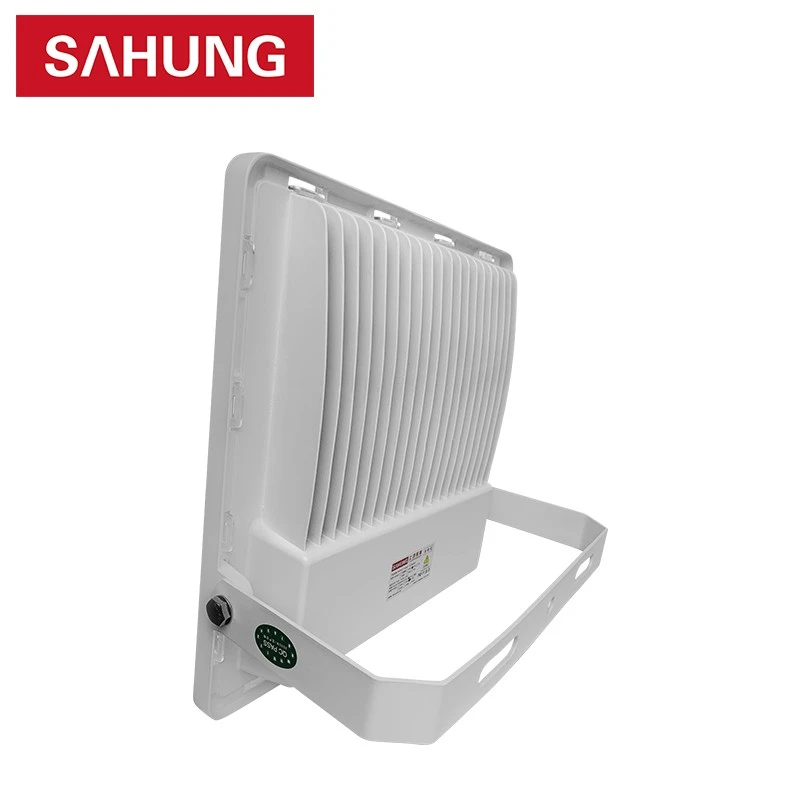

The fixture features a die-cast aluminum heat sink structure. The base plate keeps tight contact with the LED light source. Air convection design realizes continuous heat exchange, stabilizing thermal dissipation and effectively reducing light attenuation to extend service life.

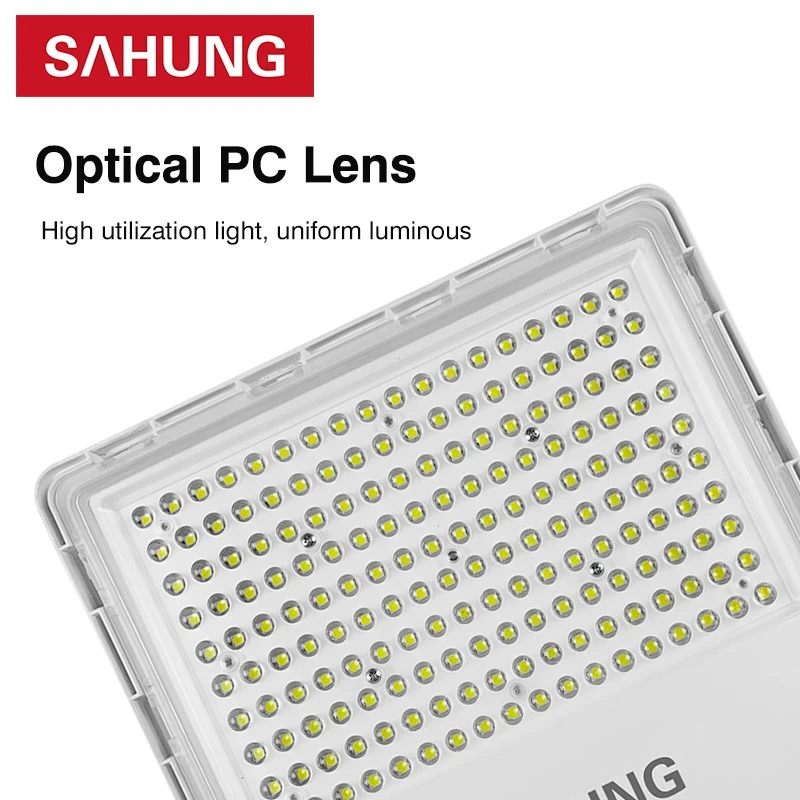

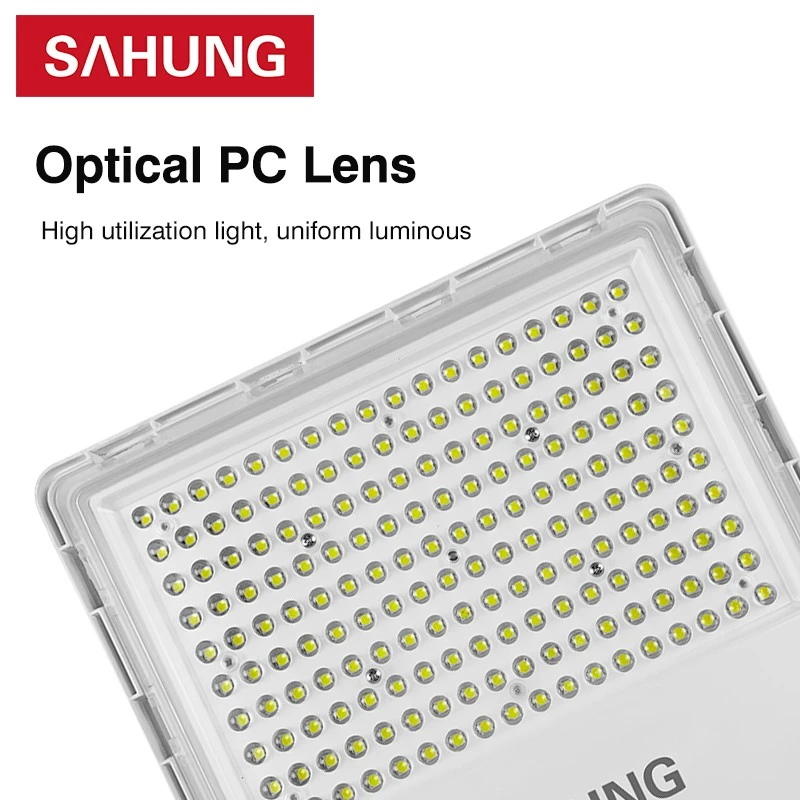

Equipped with well-known brand LED chips, the floodlight offers high brightness, low lumen depreciation and long lifespan. Light bead brands support customization to satisfy diverse project demands. High-performance optical PC lens improves light utilization and achieves even luminous distribution. Multiple optional beam angles: 60°, 90° (default), 120°.

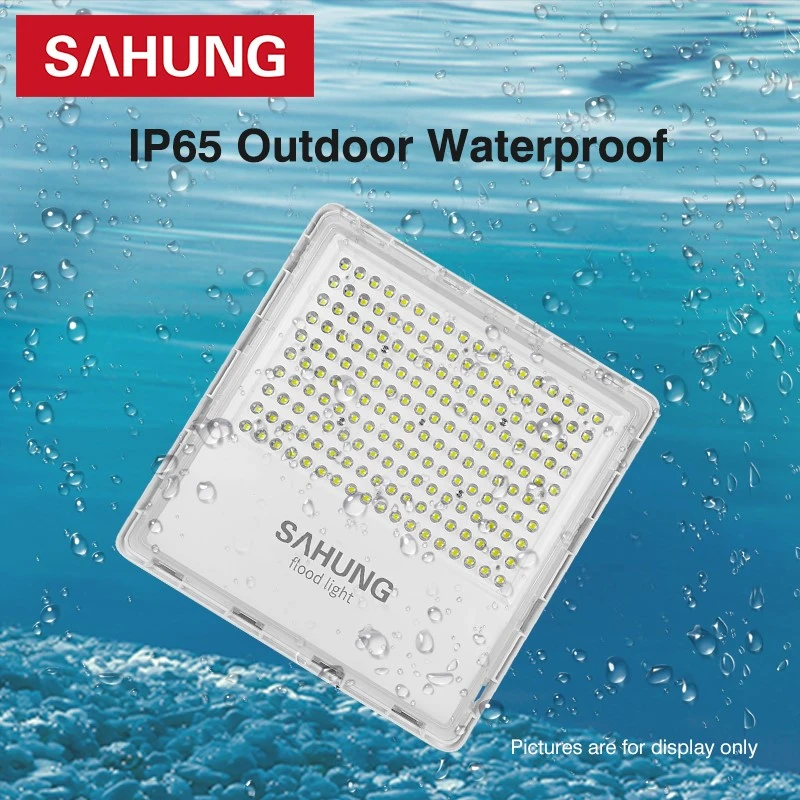

With IP65 waterproof rating, tightly sealed silicone loop prevents water and dust intrusion, adapting to various outdoor weather conditions. The die-cast aluminum shell provides excellent anti-corrosion capability. Color temperature can be customized within 2700K–6500K, CRI ≥Ra80. Available power options: 50W, 100W, 150W, 200W.
Technical Specification Table
|
Parameter |
Specification |
|
Model |
SAHUNG TGS LED Industrial Flood Light |
|
Rated Power |
50W / 100W / 150W / 200W |
|
Housing Material |
White Die-Cast Aluminum Alloy |
|
Optical Component |
High Efficiency PC Optical Lens |
|
Optional Beam Angle |
60° / 90° (Default) / 120° |
|
LED Chips |
Famous brand, customizable chip brand |
|
LED Driver |
Intelligent IC Driver, IP67 protection; Optional SAHUNG / Meanwell / MOSO |
|
Protection Grade |
IP65 Waterproof & Dustproof |
|
CCT |
2700K ~ 6500K Customizable |
|
CRI |
≥Ra80 |
|
Structure Feature |
Air convection heat dissipation, corrosion-resistant aluminum housing |
|
Application |
Parking lots, billboards, yards, gardens, factory outer walls, commercial plaza lighting |
