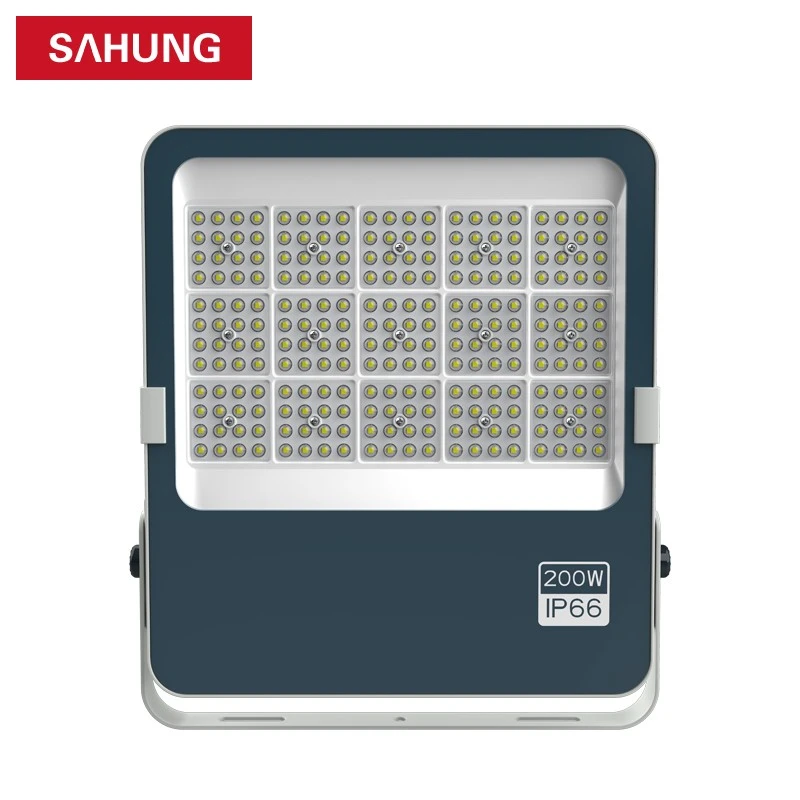

TGR Series High Power Industrial Flood Light
SAHUNG TGR LED Industrial Flood Light is a heavy-duty high-power outdoor lighting solution designed for stadiums, large plazas, park squares, bridges, tunnels, urban streets, commercial complexes and industrial outdoor lighting projects. Built with full aluminum die-cast housing and streamlined heat sink structure, this flood lamp delivers stable high lumen output, excellent heat dissipation, IP66 weather resistance and 6KV surge lightning protection for long-term operation under harsh outdoor conditions.

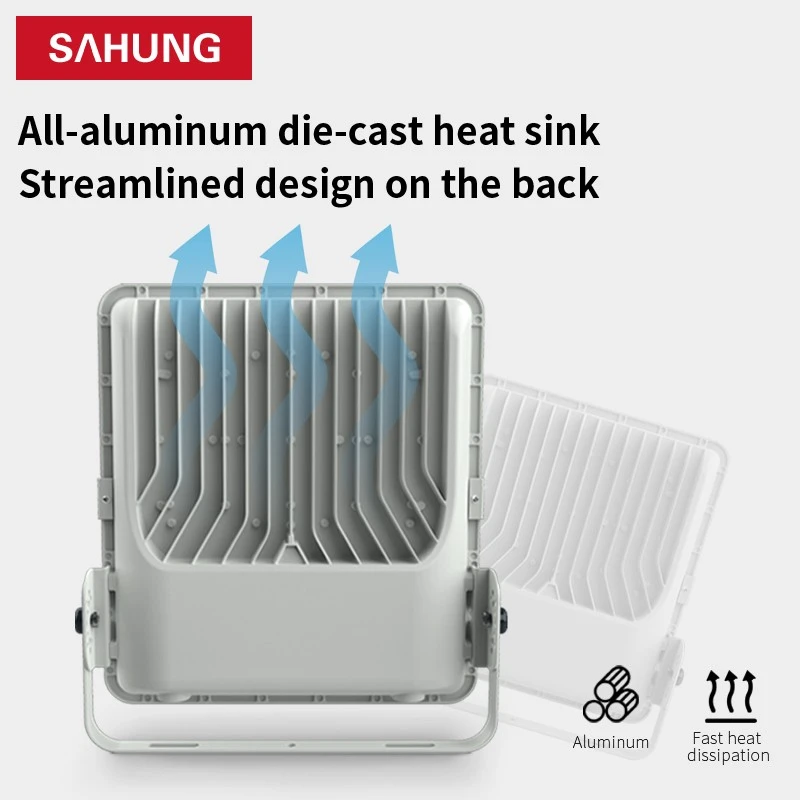

The luminaire adopts an all-aluminum die-cast integrated heat sink. Enlarged heat dissipation surface area accelerates rapid heat evacuation generated by LED chips, effectively lowering working temperature, slowing light attenuation and extending the overall service life of the fixture.

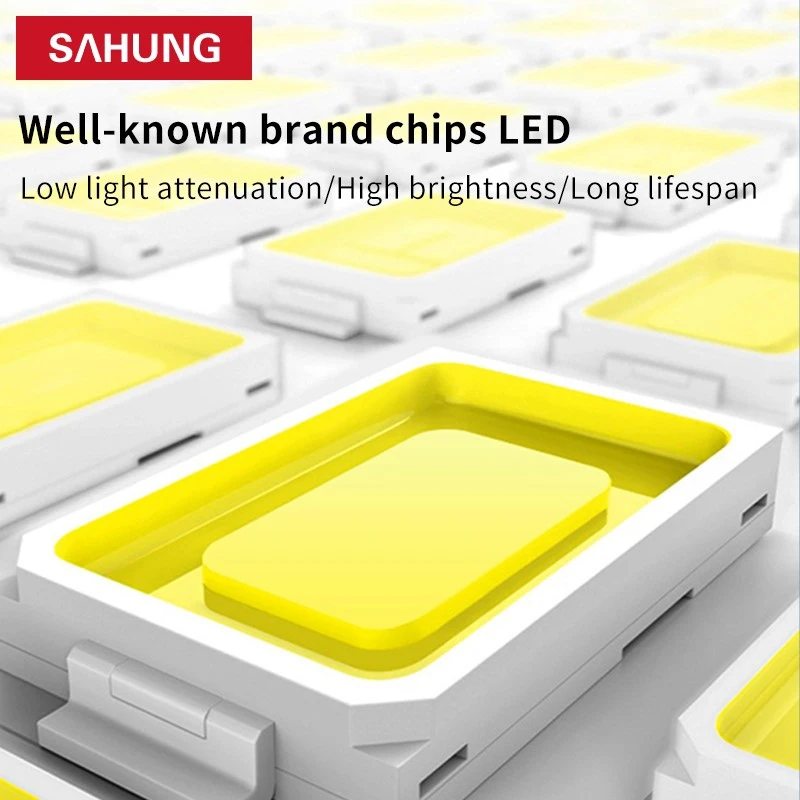

Equipped with well-known brand LED chips, the floodlight provides high brightness, low lumen depreciation and long service lifespan. High-hardness tempered glass cover features outstanding light transmittance, faithfully restores true light color and offers strong impact resistance. Multiple beam angles (90° / 120°) are optional to satisfy varied lighting range requirements.

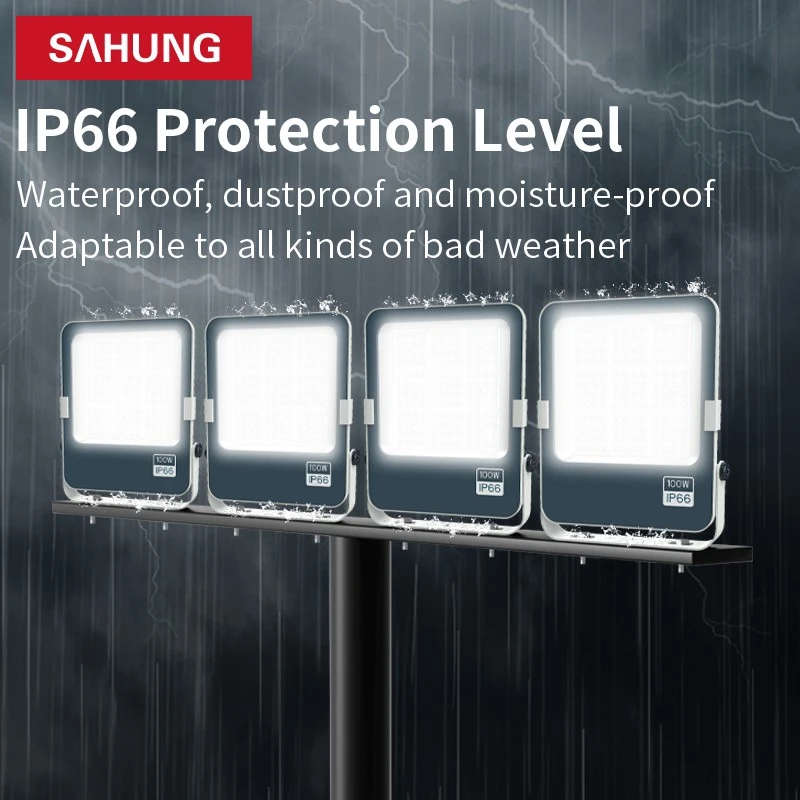

With IP66 waterproof, dustproof and moisture-proof rating plus ≥6KV anti-surge lightning protection, the light adapts to all kinds of severe weather. Color temperature can be customized from 2700K to 6500K, CRI ≥Ra80 for superior color rendering.
Technical Specification Table
|
Parameter |
Specification |
|
Model |
SAHUNG TGR LED Industrial Flood Light |
|
Rated Power |

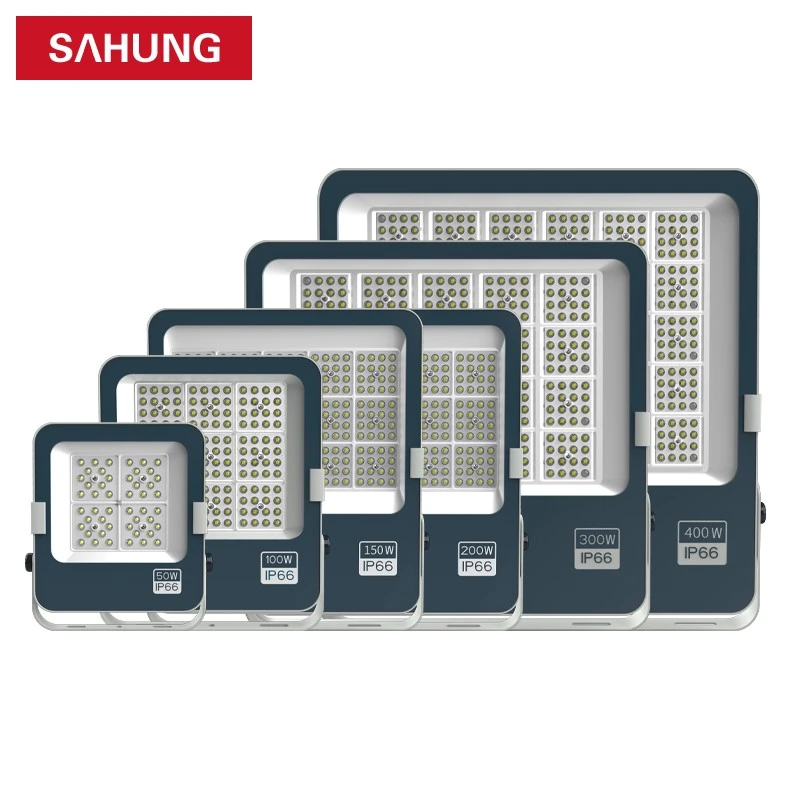

50W / 100W / 150W / 200W / 300W / 400W |
|
Housing Material |
All Aluminum Die-Cast Alloy |
|
Front Cover |
High Hardness Tempered Glass |
|
Optional Beam Angle |
90° / 120° |
|
LED Chips |
Well-known brand, low light attenuation |
|
LED Driver |
Intelligent IC Driver, IP66protection, AC85~265V |
|
Protection Grade |
IP66 Waterproof & Dustproof |
|
Lightning Protection |
≥6KV Anti-surge |
|
CCT |
2700K ~ 6500K Customizable |
|
CRI |
≥Ra80 |
|
Bracket |
180° Adjustable Mounting Bracket |
|
Warranty |
3 Years / 5 Years Optional |
|
Application |
Stadiums, park squares, bridges, tunnels, streets, commercial plazas, large-scale outdoor venues |
