Outside Flood Light Fixtures

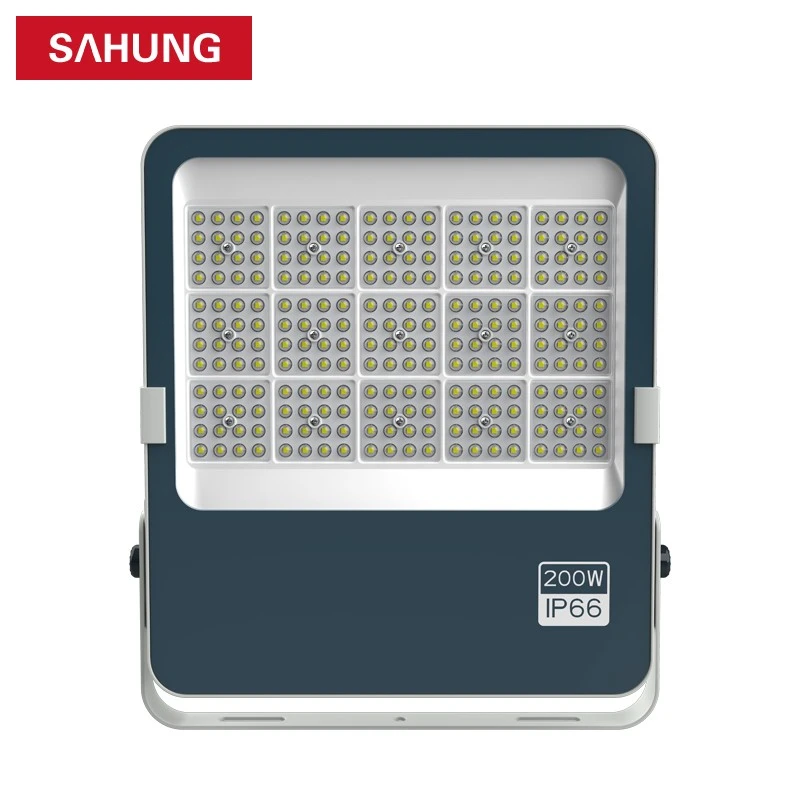

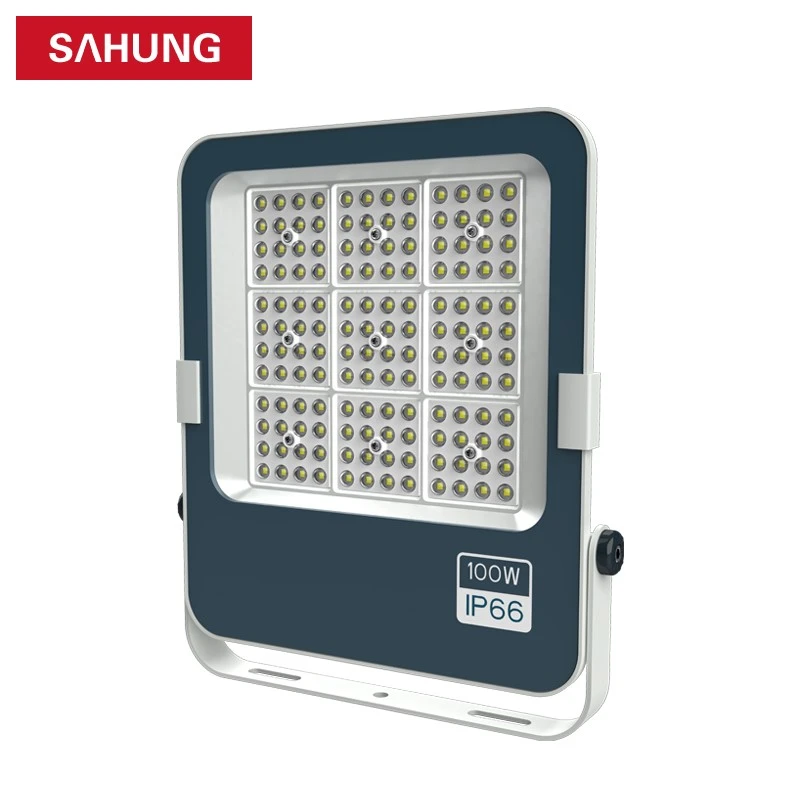

SAHUNG TGR Outside Flood Light Fixtures is a heavy-duty high-power outdoor lighting solution designed for stadiums, large plazas, park squares, bridges, tunnels, urban streets, commercial complexes and industrial outdoor lighting projects. Built with full aluminum die-cast housing and streamlined heat sink structure, this flood lamp delivers stable high lumen output, excellent heat dissipation, IP66 weather resistance and 6KV surge lightning protection for long-term operation under harsh outdoor conditions.
TGR Series High Power Industrial Flood Light

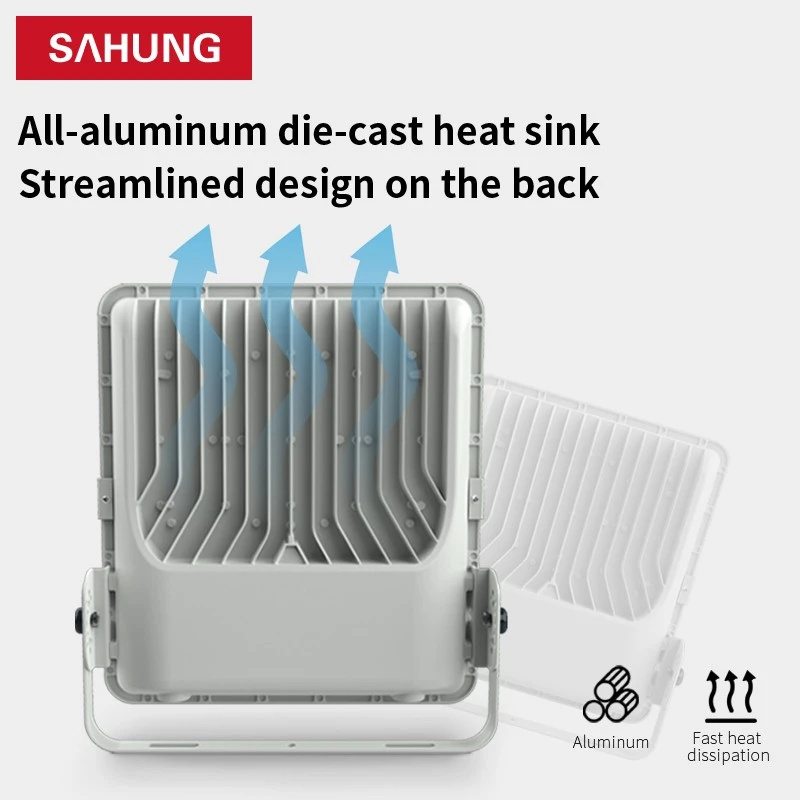

The Outside Flood Light Fixtures adopts an all-aluminum die-cast integrated heat sink. Enlarged heat dissipation surface area accelerates rapid heat evacuation generated by LED chips, effectively lowering working temperature, slowing light attenuation and extending the overall service life of the fixture.

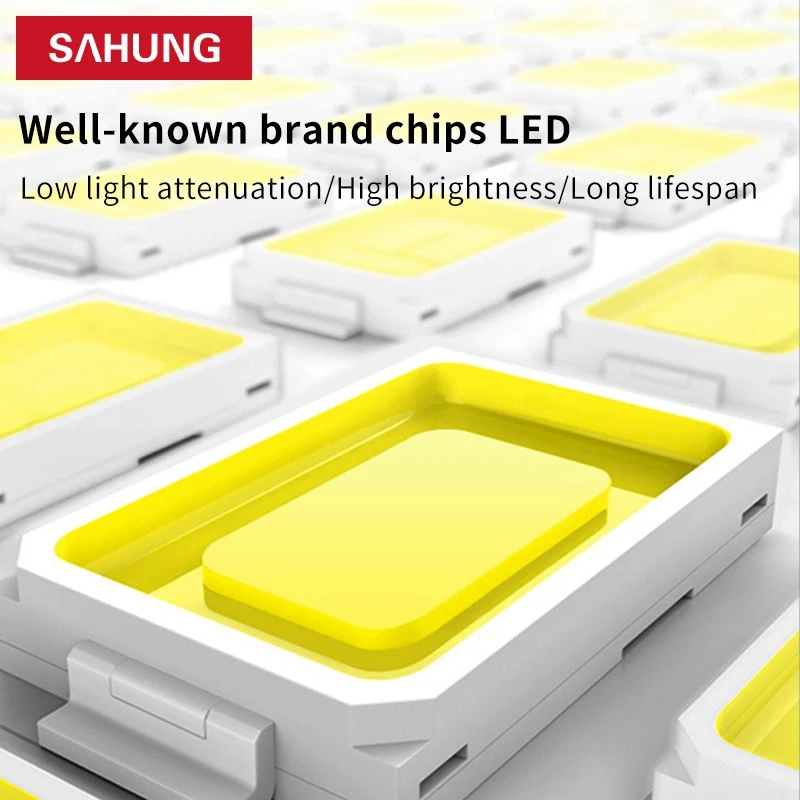

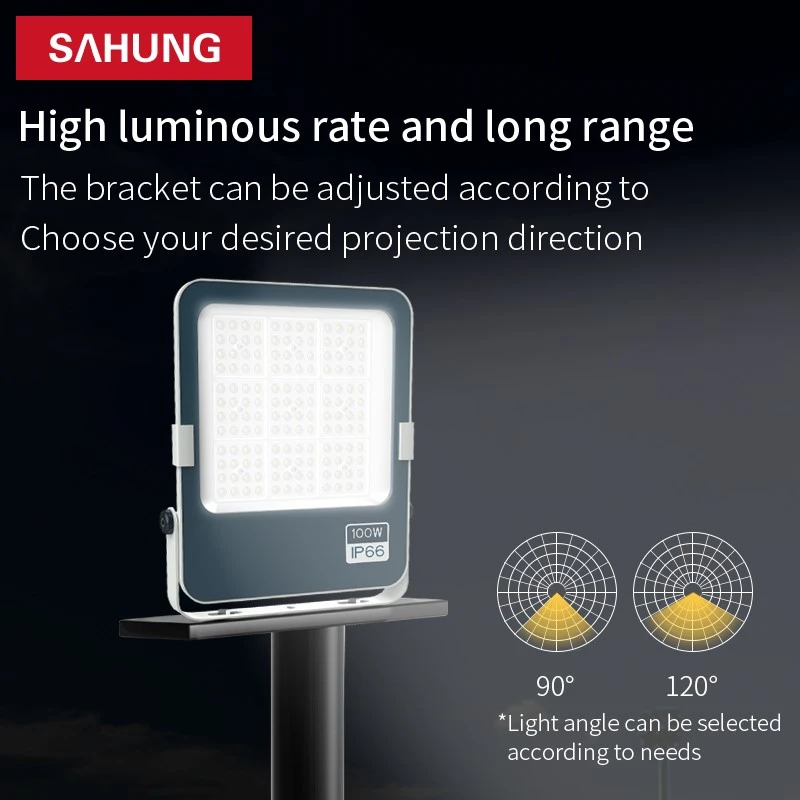

Equipped with well-known brand LED chips, the floodlight provides high brightness, low lumen depreciation and long service lifespan. High-hardness tempered glass cover features outstanding light transmittance, faithfully restores true light color and offers strong impact resistance. Multiple beam angles (90° / 120°) are optional to satisfy varied lighting range requirements.

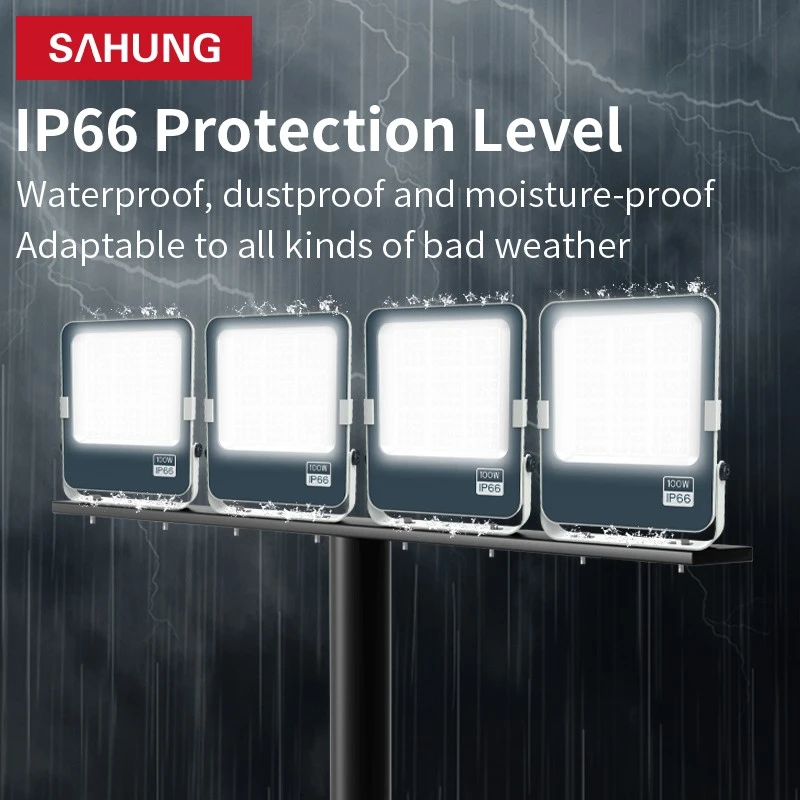

With IP66 waterproof, dustproof and moisture-proof rating plus ≥6KV anti-surge lightning protection, the light adapts to all kinds of severe weather. Color temperature can be customized from 2700K to 6500K, CRI ≥Ra80 for superior color rendering.
Technical Specification Table
|
Parameter |
Specification |
|
Model |
SAHUNG TGR LED Industrial Flood Light |
|
Rated Power |

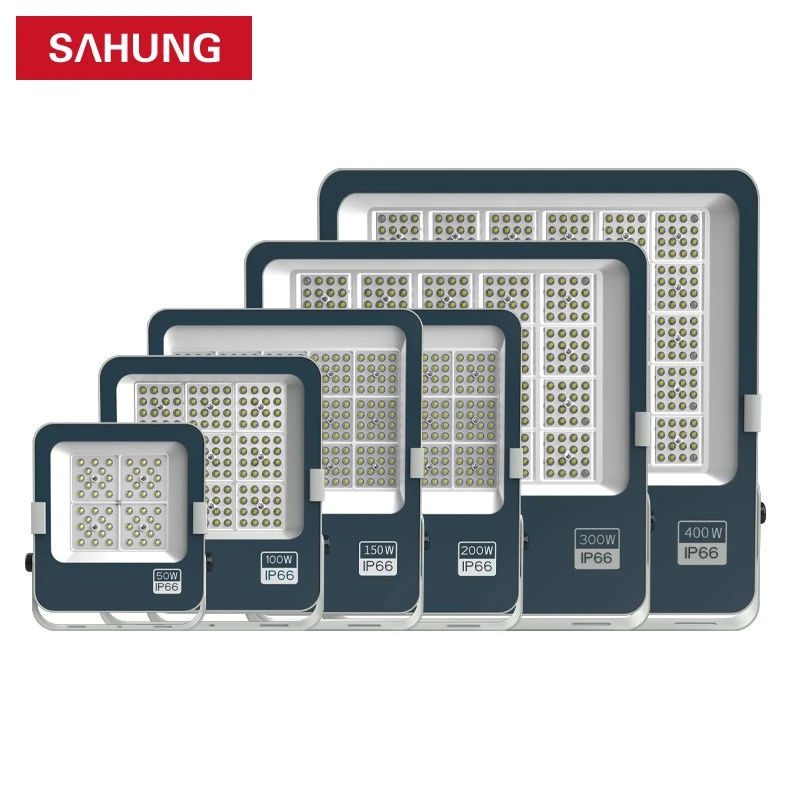

50W / 100W / 150W / 200W / 300W / 400W |
|
Housing Material |
All Aluminum Die-Cast Alloy |
|
Front Cover |
High Hardness Tempered Glass |
|
Optional Beam Angle |
90° / 120° |
|
LED Chips |
Well-known brand, low light attenuation |
|
LED Driver |
Intelligent IC Driver, IP66protection, AC85~265V |
|
Protection Grade |
IP66 Waterproof & Dustproof |
|
Lightning Protection |
≥6KV Anti-surge |
|
CCT |
2700K ~ 6500K Customizable |
|
CRI |
≥Ra80 |
|
Bracket |
180° Adjustable Mounting Bracket |
|
Warranty |
3 Years / 5 Years Optional |
|
Application |
Stadiums, park squares, bridges, tunnels, streets, commercial plazas, large-scale outdoor venues |
FAQ
1. What mast heights are your high mast lights compatible with?
Our high mast lights are compatible with 15m–40m lifting or fixed masts, suitable for plazas, ports, and large storage yards.
2. What brands of LED chips and drivers do you use?
We use premium components, including Philips Lumileds LED chips and Mean Well / INVENTRONICS drivers, with options for customer selection.
3. Where is your factory located? Can we visit for an audit?
We warmly welcome clients worldwide to schedule on-site factory audits. We are happy to arrange a full tour of our production lines, QC labs, and R&D centers to showcase our capabilities.
4. What are your core products and main business focus?
We specialize in a comprehensive range of industrial lighting solutions, including LED High Bay Lights, Explosion-proof Lights, Flood Lights, Tunnel Lights, Street Lights, Sports Stadium Lights, and High Mast Lights.
Hot Tags: industrial flood light fixtures, China industrial flood light fixtures manufacturers, suppliers, factory
