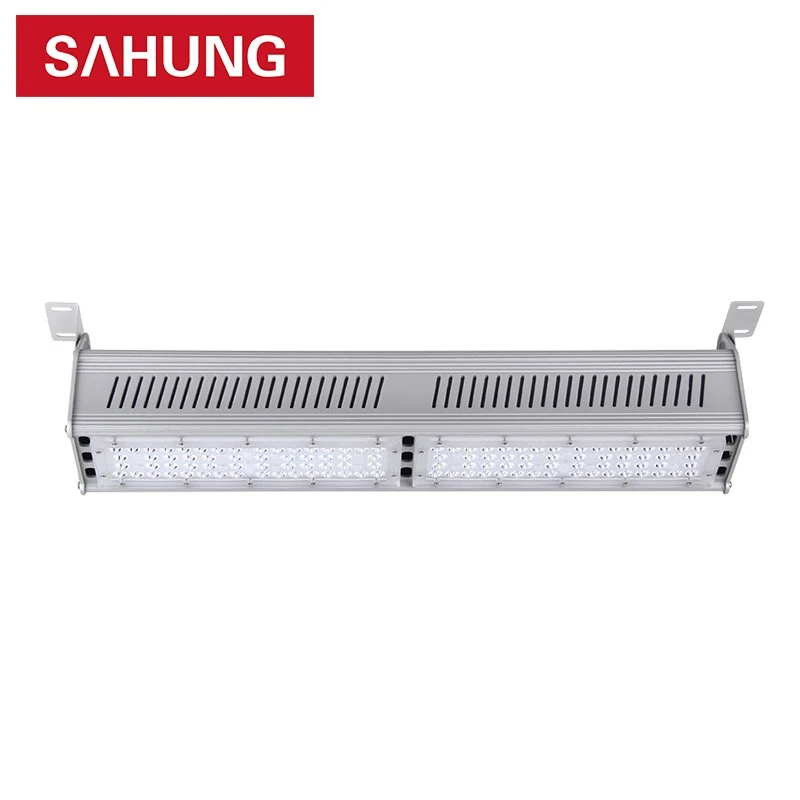

TXD Linear High Bay Light
SAHUNG TXD Linear High Bay Light is a professional linear industrial high bay luminaire specially designed for factories, warehouses and logistics centers. Constructed with aviation-grade die-cast aluminum housing, it adopts modular fin strip-hole heat dissipation architecture for efficient thermal convection. Equipped with renowned brand customizable LED chips, high-transmittance PC lens and IP67 waterproof intelligent IC driver, this linear high bay delivers high brightness, low light attenuation and stable long-hour operation. Available in 50W / 100W / 150W / 200W / 250W, with optional beam angles and adjustable color temperature.
Core Advantages
✅ Aviation Die-Cast Aluminum Housing
Premium aviation aluminum features excellent thermal conductivity, outstanding sealing and corrosion resistance. Effectively reduces thermal resistance to maintain low operating temperature for the whole fixture.

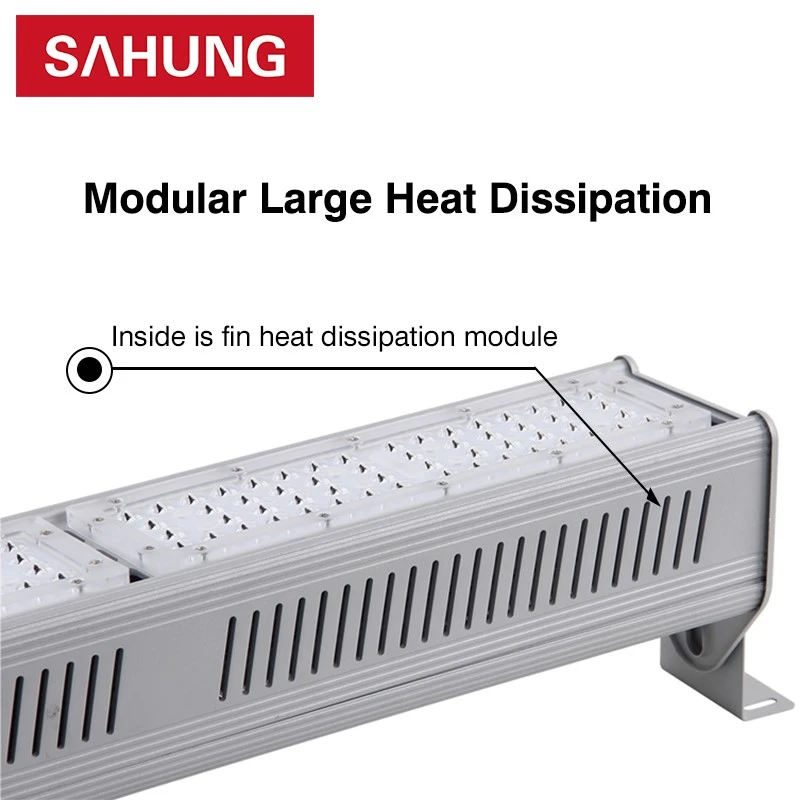

✅ Modular Fin Strip-Hole Heat Dissipation
Internal fin heat dissipation modules cooperate with external strip ventilation holes to form continuous air circulation. Accelerates heat evacuation and suppresses light decay under continuous operation.
✅ Customizable Famous Brand LED Chips
Light bead brands can be customized as client requirements. Features high brightness, low light attenuation and extended service lifespan.
✅ IP67 Waterproof Intelligent IC Driver
Waterproof constant current power supply protects the LED light source, stabilizes output voltage and prolongs the overall service life of the high bay light.
Technical Specification Table
|
Parameter |
Details |
|
Brand |
SAHUNG |
|
Series |
TXD Linear LED High Bay Light |
|
Power Options |
50W / 100W / 150W / 200W / 250W |
|
Housing Material |
Aviation Die-cast Aluminum Alloy |
|
Protection Rating |
IP65 Housing, IP67 Driver |
|
CCT |
2700K – 6500K Customizable |
|
CRI |
≥Ra80 |
|
Light Source |
Well-known brand LED chips (Customizable) |
|
Optics |
High transmittance PC lens |
|
Beam Angle |
60° / 90° / 120° Optional |
|
Driver |
IP67 waterproof intelligent IC driver |
|
Installation |
Ceiling mounting / Chain suspension with stainless steel hook |
