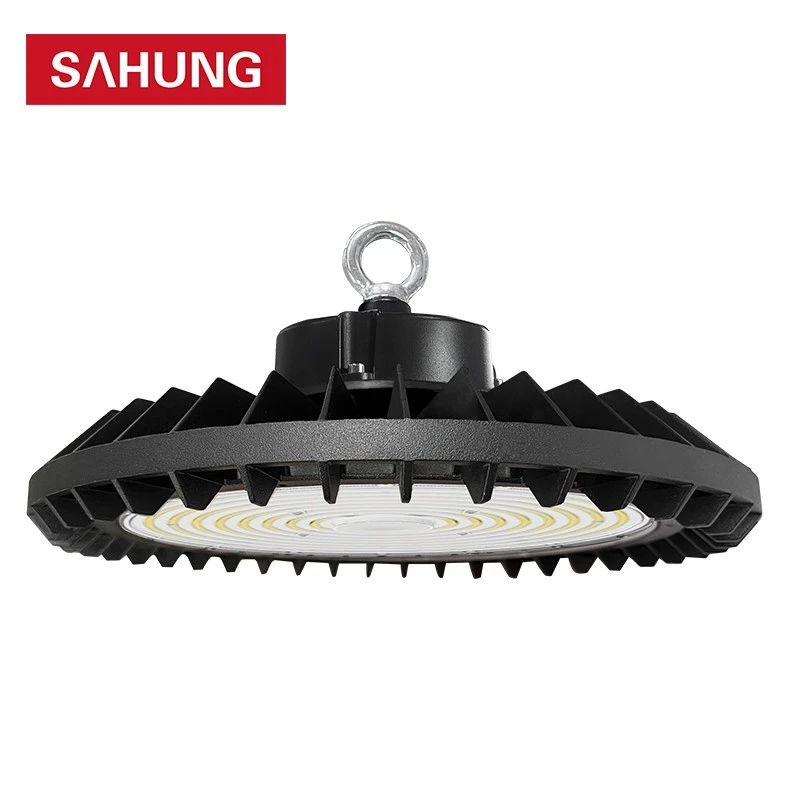

Yunsee Series High Bay UFO Light

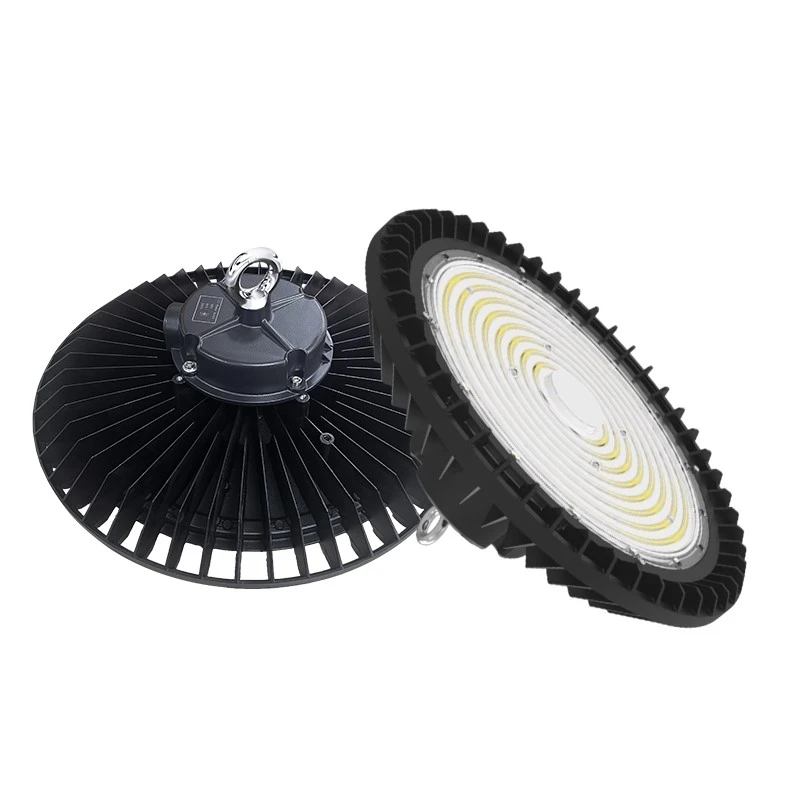

SAHUNG Yunsee Series High Bay UFO Light is a high-efficiency dimmable industrial high bay lamp engineered for modern warehouses, factories and large high-ceiling venues. This UFO-style industrial light features die-cast aluminum radiator with natural air convection cooling. It supports DIP switch adjustable three-level power output, built-in 0-10V dimming function, high luminous efficiency up to 180LM/W (customizable up to 200LM/W). Equipped with well-known brand customizable LED chips, IP65 lamp housing , it delivers stable, long-lasting energy-saving lighting for heavy-duty industrial environments.
Core Product Advantages

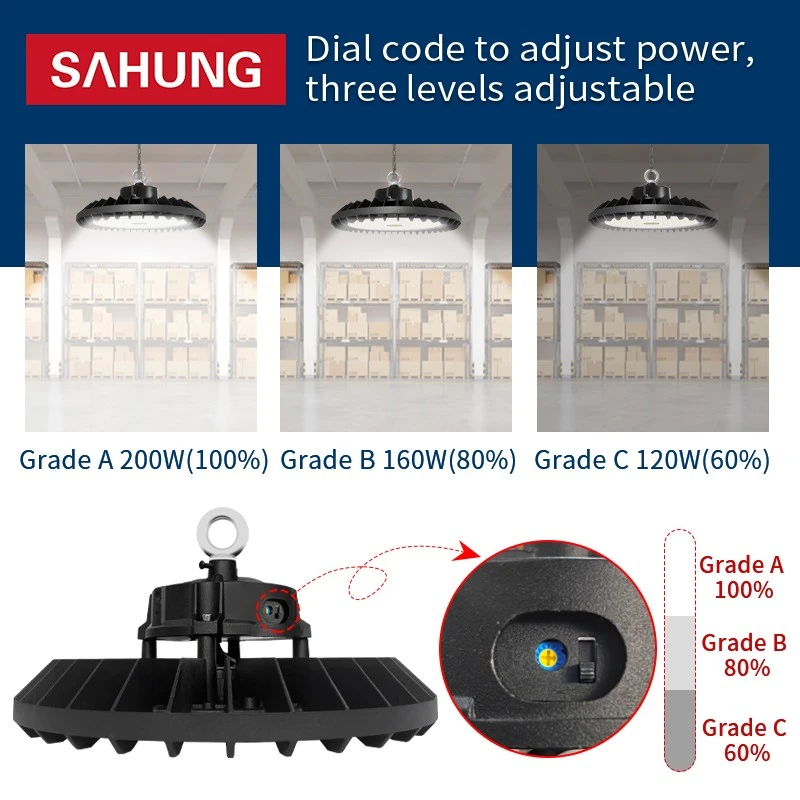

✅ DIP Switch 3-Step Adjustable Power
Built-in dial code adjustment design, three optional power grades:
Grade A: 100% Power | Grade B: 80% Power | Grade C: 60% Power
Flexible power matching for different installation heights and lighting requirements, convenient for unified project procurement.

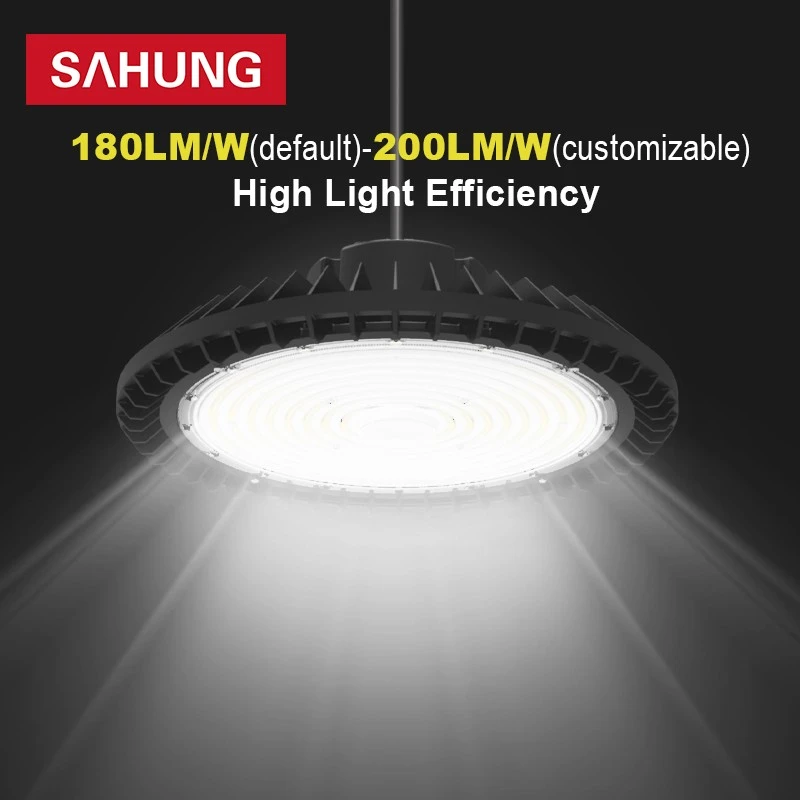

✅ Ultra-High Luminous Efficiency
Standard luminous efficiency reaches 180LM/W; 200LM/W high-efficiency version is available upon customer request, significantly cutting electricity bills compared with traditional industrial lighting.
✅ Customizable Brand LED Chips
Famous brand LED light sources, low light attenuation, high brightness and long service life. Light bead brands can be customized to satisfy different market and certification demands.

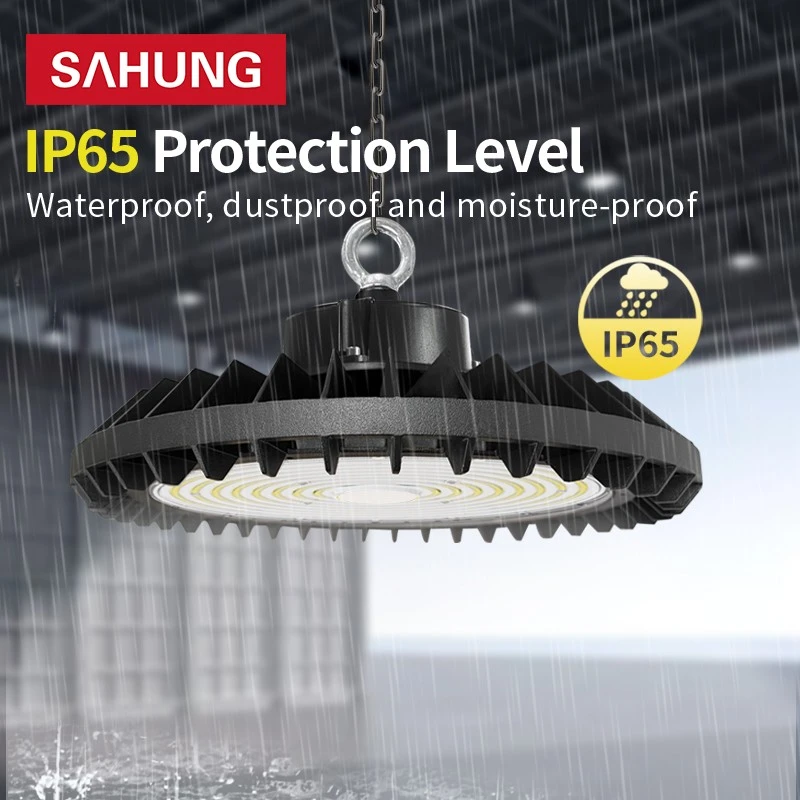

✅ IP65 Waterproof & Dustproof Rating
Fully sealed lamp body reaches IP65 protection grade, waterproof, dustproof and moisture-resistant. Adaptable to various harsh indoor industrial conditions.
Technical Specifications
|
Parameter |
Details |
|
Brand |
SAHUNG |
|
Series |
Yunsee High Bay UFO Light |
|
Power Models |
100W / 150W / 200W / 240W / 300W |
|
Adjustable Power Mode |
DIP Switch, 100% / 80% / 60% three levels |
|
Dimming |
0-10V Dimmable |
|
Luminous Efficacy |
Standard:180LM/W; Optional:200LM/W |
|
Housing Material |
Die-cast Aluminum Alloy + PC Lens |
|
Lamp IP Rating |
IP65 |
|
Input Voltage |
AC100-277V Wide Voltage |
|
CCT |
2700K ~ 6500K Customizable |
|
CRI |
≥Ra80 |
|
Beam Angle |
90° (Default) / 120° Optional |
|
Installation |
Sling chain / Hanger rod mounting |
